Reviews & Ratings:
|
||
|
|
||

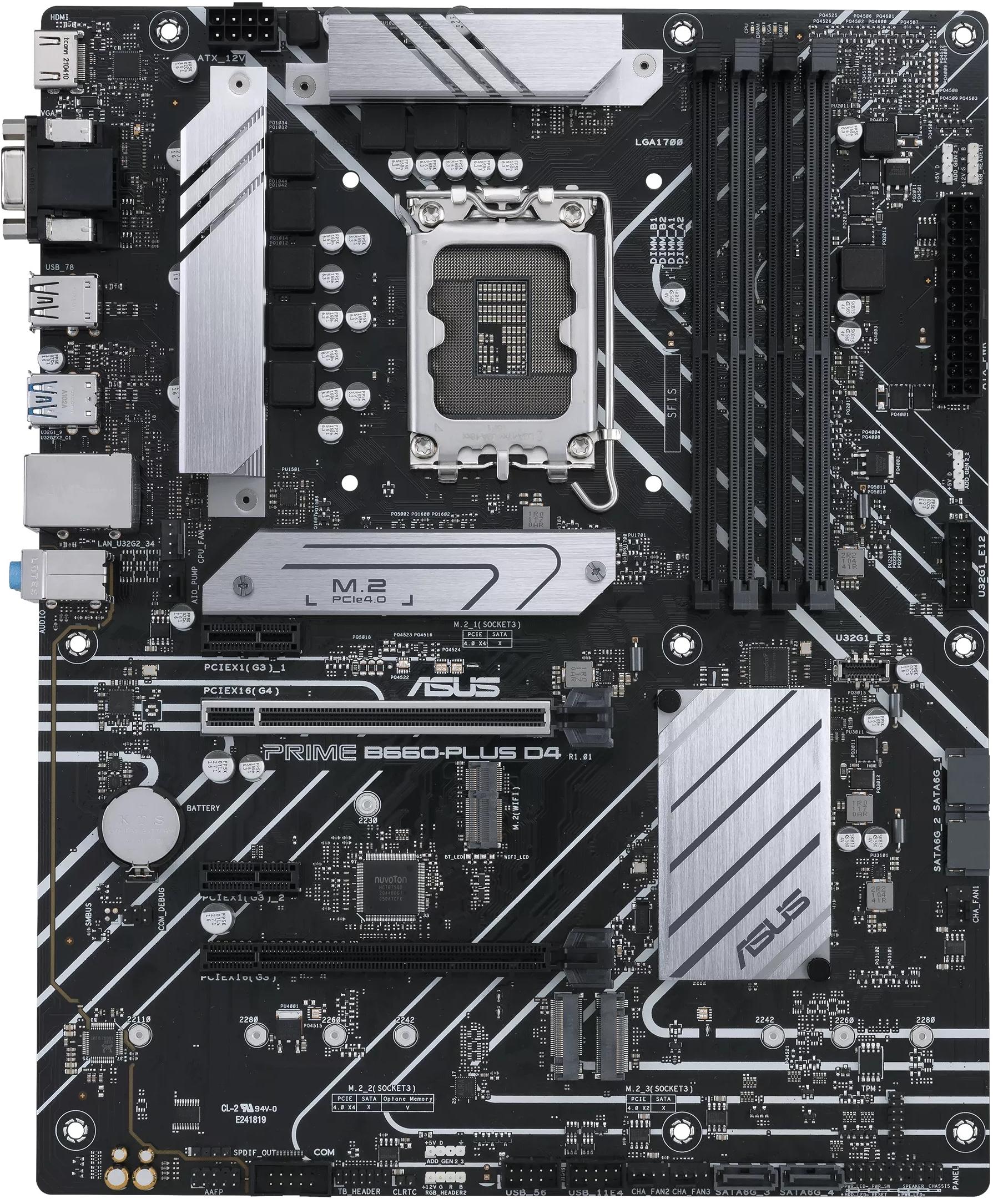

Asus Prime Series Intel B660 LGA1700 ATX Motherboard (ASUS PRIME B660-PLUS D4)
• 8 Power Stages
• 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)
• 1 x PCIe 4.0 x16 SafeSlot core+, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• 2 x USB2.0 Type-A, 3 x USB3.2 Type-A, 1 x USB3.2 Type-C
• 1 x HDMI, 1 x DisplayPort, 1 x D-Sub
• 3 x M.2 PCIe 4.0 slots
• 4 x SATA 6Gb/s ports, SATA RAID 0/1/5/10
• 1 x Realtek 2.5Gb Ethernet port
• Realtek 7.1 Surround Sound High Definition Audio CODEC
Warranty: 3 years
Our price: | R 3,019.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | ASUS PRIME B660-PLUS D4 |
| Product Line | Prime Series |
| Product Type | Motherboard |
| Processor Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B660 |
| Supported Processors | 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| CPU Gen Support | 12th Gen |
| Memory | |
| Memory Channels | Quad |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory |
| Max System Memory | 128 GB |
| ECC Support | - |
| Rear Panel Connectors | |
| USB 2.0 | 2 2 x USB 2.0 ports(Type-A) |
| USB 3.2 Type-A | 3 2 x USB 3.2 Gen 2 ports(Type-A) 1 x USB 3.2 Gen 1 port(Type-A) |
| USB 3.2 Type-C | 1 1 x USB 3.2 Gen 2x2 Type-C |
| D-Sub (VGA) | 1 |
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1 x PCIe 4.0 x16 SafeSlot core+, 1 x PCIe 3.0 x16 |
| PCI Express x1 | 2 2 x PCIe 3.0 x1 |
| Graphics System | |
| Integrated Video | - |
| Multi-GPU Support | <not specified>
|
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 3 |
| TPM Module Connector | 1 1 x SPI TPM header (14-1pin) |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 1 |
| CPU FAN Connector | 1 |
| AIO Pump Header | 1 |
| Addressable LED Strip Headers | 3 |
| 4-pin RGB LED Connector | 2 |
| S/PDIF Header | 1 |
| USB 2.0 Headers | 2 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| USB 3.2 Headers | 2 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| Front panel audio header | 1 |
| Front Panel Connector | 1 1 x 20-3 pin System Panel header with Chassis intrude function |
| COM Port Header | 1 |
| Networking | |
| Wired LAN | Realtek 2.5Gb Ethernet port |
| Storage System | |
| M.2 Ports | 3 |
| SATA 3.0 Ports | 4 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Channels | 7.1 |
Customer Reviews top
topBe the first to Review this Product
