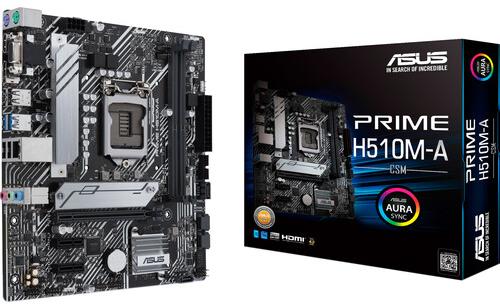

Asus Prime Series Intel H510 Socket LGA1200 Micro-ATX Motherboard (PRIME H510M-A)
• Micro-ATX Form Factor
• Intel H510 Chipset
• LGA 1200 Socket
• 2 x Dual-Channel DDR4 Slots
• 4 x SATA III, 1 x M.2
• 1 x PCIe 4.0 x16 Slot
• 2 x PCIe 3.0 x1 Slots
• USB 3.2 Gen 1 & USB 2.0
• Gigabit Ethernet
Our price: | R 1,929.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | ASUS PRIME H510M-A |
| Product Line | Prime Series |
| Product Type | Motherboard |
| Processor Socket | LGA1200 |
| Form Factor | Micro-ATX |
| Chipset | Intel H510 |
| Supported Processors | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| CPU Gen Support | 10th Gen 11th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 2 |
| Memory Bandwidth | 3200(OC)/2933/2800/2666/2400/2133 MHz |
| Max System Memory | 64 GB |
| ECC Support | <not specified>
|
| Rear Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.2 Type-A | 2 |
| D-Sub (VGA) | 1 |
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse | 1 |
| PS/2 Keyboard | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 1 |
| PCI Express x1 | 2 |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | <not specified>
|
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| Addressable LED Strip Headers | 2 |
| 4-pin RGB LED Connector | 2 |
| S/PDIF Header | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| Front panel audio header | 1 |
| COM Port Header | 1 |
| Networking | |
| Wired LAN | 1 x Intel 1Gb Ethernet |
| Storage System | |
| M.2 Ports | 1 |
| SATA 3.0 Ports | 4 |
RAID  |
<not specified>
|
| Optane Support | <not specified>
|
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC |
| Channels | 7.1 |
