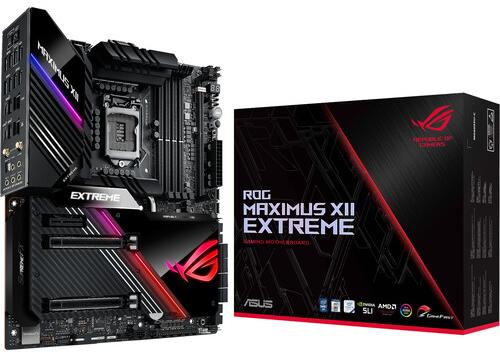

Asus ROG Series Maximus XII Extreme Intel Z490 Socket LGA1200 ATX Motherboard (ASUS ROG MAXIMUS XII Extreme)
• 128GB Max DDR4 Memory • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Dual Channel Memory • ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 • Intel® I225-V 2.5Gb Ethernet • Intel Wi-Fi 6 AX201 • Bluetooth v5.1 • Supports NVIDIA 2-Way SLI Technology • Supports AMD 3-Way CrossFireX Technology
NIVO#: 71740Mnf.#: 90MB12J0-M0EAY0
Warranty: 1 year
Our price:
R 21,099.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
90MB12J0-M0EAY0
Product Line
ROG Series
Product Type
Desktop
Processor Socket
LGA1200
Form Factor
ATX
Chipset
Intel Z490
Supported Processors
10th Gen Intel Core, Pentium Gold and Celeron Processors
CPU Gen Support
10th Gen

Memory
Memory Channels
Dual
Memory Type
DDR4
Memory Slots
4
Memory Bandwidth
DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max System Memory
128 GB
ECC Support
-

Rear Panel Connectors
USB 2.0
2
USB 3.1 Type-A
6
USB 3.2 Type-A
2
USB 3.2 Type-C
2
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
<not specified>
LAN (RJ45)
2
S/PDIF Ports
1 x Optical
OFC Audio Jacks
5

Expansion Slots
PCI Express x16/x8/x4
<not specified>
PCI Express x16 2.0 Compliant
2
2 x PCIe 3.0 x16 (x16 or dual x8)
PCI Express x1
<not specified>

Graphics System
Integrated Video
<not specified>
Multi-GPU Support
Supports AMD 3-Way CrossFireX Technology
Supports NVIDIA 2-Way SLI Technology

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
2
AAFP Connector
1
System/Chassis FAN Headers
2
2-pin Thermal Sensor Connector
1
Thunderbolt Connector
1
CPU FAN Connector
1
CPU OPT Fan Connector
1
Water Pump Header
2
3-pin Water Flow Connector
1
Water Cooling IN Header
1
Water Cooling OUT Header
1
Addressable LED Strip Headers
4
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
USB 2.0 Headers
2
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
USB 3.2 Headers
2
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
Front Panel Connector
2
2 x USB 3.2 Gen 2 front panel connector
BIOS Switches
1

Networking
Wired LAN
ASUS LANGuard
Marvell AQtion AQC107 10Gb Ethernet
Intel I225-V 2.5Gb Ethernet
Wireless LAN
Yes
Intel Wi-Fi 6 AX201
Bluetooth
Yes
Bluetooth v5.1

Storage System
M.2 Ports
2
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
SATA 3.0 Ports
8
RAID
0/1/5/10
Optane Support
Yes

Audio
Integrated Audio
Yes
Audio Chip
ROG SupremeFX
Channels
7.1
