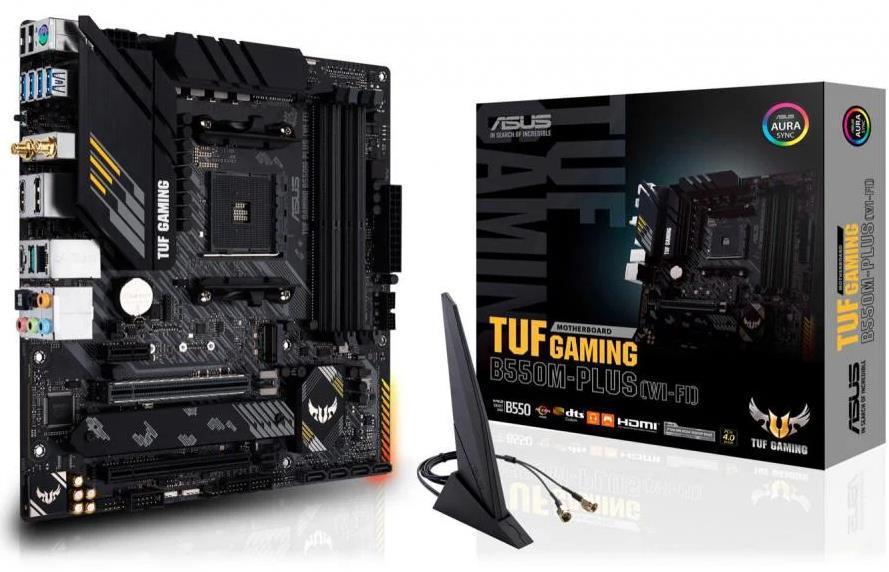

Asus TUF Series B550 Socket AM4 3rd Gen Micro ATX Motherboard (TUF GAMING B550M-PLUS WIFI)
• 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM
• 128GB DDR4 Max Memory
• 4 x DDR4 4800(O.C.) DIMM Slots
• 1 x DisplayPort 1.2, 1 x HDMI
• Rear: 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C), 4 x USB 3.2 Gen 1 Type-A port, 2 x USB 2.0 ports
• Front: 2 x USB 3.2 Gen 1 Type-A ports, 4 x USB 2.0 Type-A ports
• 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110
• 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
• Realtek RTL8125B 2.5GB Ethernet
• Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.1
• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Warranty: 3 years
Our price: | R 3,769.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | ASUS TUF GAMING B550M-PLUS (WIFI) |
| Product Line | TUF Series |
| Product Type | Motherboard |
| Processor Socket | AM4 |
| Form Factor | MicroATX |
| Chipset | AMD B550 |
| Supported Processors | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors |
| CPU Gen Support | 3rd Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Max System Memory | 128 GB |
| ECC Support | Yes |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 6 2 x USB 3.2 Gen 2 Type-A port 4 x USB 3.2 Gen 1 Type-A port |
| USB 3.2 Type-C | 1 1 x USB 3.2 Gen 2 Type-C port |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) |
| PCI Express x1 | 1 1 x PCIe 3.0 x1 |
| Graphics System | |
| Integrated Video | Yes |
| Supported Monitors | 2 |
| Multi-GPU Support | AMD 2-Way CrossFireX Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| CPU OPT Fan Connector | 1 |
| Addressable LED Strip Headers | 1 |
| 4-pin RGB LED Connector | 2 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| COM Port Header | 1 |
| Networking | |
| Wired LAN | Realtek RTL8125B 2.5GB Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 4 |
RAID  |
0/1/10 |
| Optane Support | - |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC S1200A |
| Channels | 7.1 |
