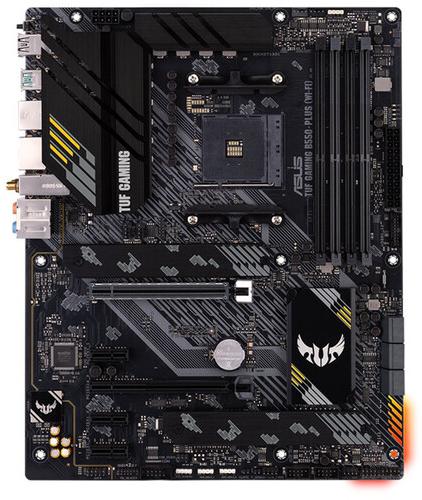

Asus TUF Series B550 Socket AM4 ATX Motherboard (ASUS TUF GAMING B550-PLUS WIFI)
• ATX Form Factor • AMD B550 Chipset • AM4 Socket • 4 x Dual-Channel DDR4-4800 (OC) • 6 x SATA III, 2 x M.2 • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 • 3 x PCIe 3.0 x1 • 7.1-Channel Realtek ALC S1200A Codec • Wi-Fi 6 & 2.5 Gigabit Ethernet • Supports 2-Way AMD CrossFireX
Warranty: 3 years
Our price:
R 3,989.95
 (incl. VAT)
Availability  check now
Shipping time 2-3 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
ASUS TUF GAMING B550-PLUS WIFI
Product Line
TUF Series
Product Type
Desktop
Processor Socket
AM4
Form Factor
ATX
Chipset
AMD B550
Supported Processors
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Memory
Memory Channels
Dual
Memory Type
<not specified>
Memory Slots
4
Memory Bandwidth
DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen 4000 G-Series Processors
DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
Max System Memory
128 GB
ECC Support
ECC Memory (ECC mode) support varies by CPU

Rear Panel Connectors
USB 2.0
2
USB 3.2 Type-A
5
1 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1 (blue) Type-A
USB 3.2 Type-C
1
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
1
Display Port
1
LAN (RJ45)
1
S/PDIF Ports
1 x Optical
OFC Audio Jacks
5

Expansion Slots
PCI Express x16/x8/x4
2
PCI Express x1
3

Graphics System
Integrated Video
-
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
1
AAFP Connector
1
System/Chassis FAN Headers
3
2-pin Thermal Sensor Connector
1
TPM Module Connector
1
Clear CMOS Jumper
1
Thunderbolt Connector
1
CPU FAN Connector
1
CPU OPT Fan Connector
1
AIO Pump Header
1
Addressable LED Strip Headers
2
4-pin RGB LED Connector
2
USB 2.0 Headers
2
USB 3.2 Headers
1
COM Port Header
1

Networking
Wired LAN
TUF LANGuard
Realtek RTL8125B 2.5Gb Ethernet
Wireless LAN
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel Wi-Fi 6 AX200

Storage System
M.2 Ports
2
SATA 3.0 Ports
6
RAID
0/1/10
Optane Support
<not specified>

Audio
Integrated Audio
Yes
Audio Chip
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Channels
7.1
