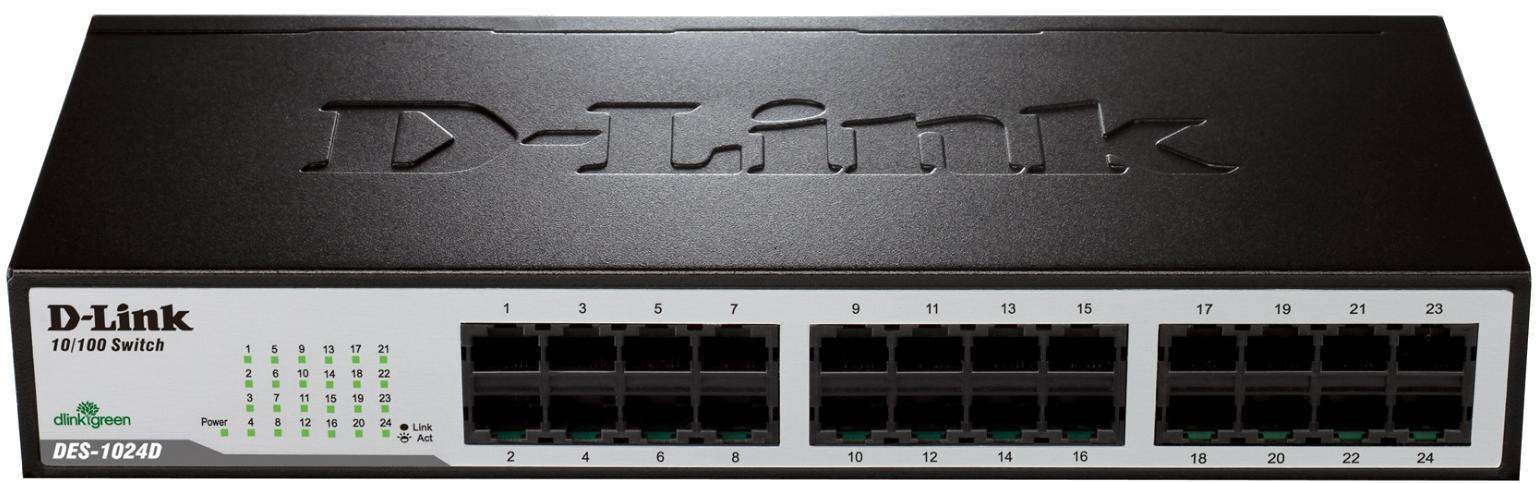

D-Link DES-1024D 24-Port 10/100Mbps Unmanaged Desktop Switch
• Inexpensive Fast Ethernet solution for SOHO/SMB • 24 10/100Mbps Fast Ethernet ports • 4.8 Gbps switching fabric • 8K entries per device • Auto MDI/MDIX crossover for all ports • Store-and-forward switching scheme • Full/half-duplex for Ethernet/Fast Ethernet speeds • IEEE 802.3x Flow Control • Plug-and-play installation
NIVO#: 24268
Model: DES-1024D
Warranty: 1 year
Our price:
R 959.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

DES-1024D 24 port 10/100Mbps Unmanaged Desktop Switch

The DES-1024D 24-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

Ideal for Basic Networking Tasks

With the D-Link DES-1024D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode.

Auto-Sensing 10/100 Ports

The DES-1024D use auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to 10 or 100 Mbps devices to create an integrated network. Each port automatically adjusts for straight-through or crossover cables to make the right link.

Flow Control for Secure Transmission

802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full.

Quality of Service (QoS)

The switches provide 802.1p priority queues for QoS, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection.

Save on Energy Costs

The switches support IEEE802.3az EEE which enables the switches to reduce power consumption when the switches are at low utilization, allowing users to save on power usage and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations.

Key Features

  • Inexpensive Fast Ethernet solution for SOHO/SMB
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation

Switching Fabric

  • 4.8 Gbps

Standards

  • IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay Auto-Negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az EEE function

Protocol

  • CSMA/CD

Data Transfer Rates

  • Ethernet: 10 Mbps (half duplex) ; 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex) ; 200 Mbps (full duplex)

Number of Ports

  • 24 10/100Mbps Fast Ethernet ports

Topology

  • Star

Network Cables

  • 10BASE-T:
    • UTP CAT 3/4/5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports

LED Indicators

  • Per port: Link/Activity
  • Per device: Power

Transmission Method

  • Store-and-forward

MAC Address Table

  • 8K entries per device

MAC Address Learning

  • Automatic update

Packet Filtering /Forwarding Rates (half duplex)

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port

RAM Buffer

  • 256 Bytes (2M bits)

Power Input

  • 100~240 V AC 50/60 Hz internal universal power supply

Power Consumption

  • Power On (Standby):
    • DC input: 1.18 Watts
    • AC input: 2.09 Watts
  • Max.:
    • DC input: 2.72 Watts
    • AC input: 4.14 Watts

Heat Dissipation

  • Power On (Standby):
    • AC input: 7.13 BTU/h
  • Maximum:
    • AC input: 14.13 BTU/h

MTBF

  • 2,058,943 hours

Certifications

  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • C-Tick Class A
  • VCCI Class A
  • cUL
  • LVD
What's in the Box top
  • Manual
  • Power Cable
Specification top
General
Product Type
Switch
Usage
Office
Speed
Ethernet
Form Factor
Desktop
Management Type
Unmanaged
Supported Standards
IEEE 802.3
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x Flow Control capability
Features
Auto MDI/MDIX crossover for all ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
Store-and-forward switching scheme

Ports
Port Type
Ethernet LAN
Total Ports
24
Fast Ethernet RJ45 Ports
24
Gigabit RJ45 Ports
-

Performance
Switching Method
Store-and-Forward
Switching Capacity
4.8 Gbps
MAC Address Table
8 K

Physical Specification
Width
280 mm
Height
44 mm
Depth
125 mm
Weight
1,900 grams
