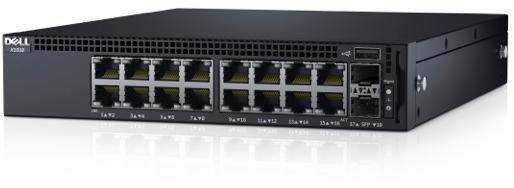

Dell X-Series X1018 16-Port Smart Web Managed Rack-mountable Switch with 2 SFP ports
• 16 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports
• 2 SFP + fiber ports
• Up to 36 Gbps Switch fabric capacity
• MAC addresses: 16K
• Silent, fanless operation
• Optional X-Series 1RU Tandem Switch Tray supports two X1018 switches mounted side-by-side
Our price: | R 4,089.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topDell X-Series X1018 16-Port Smart Web Managed Rack-mountable Switch with 2 SFP ports
Port attributes:
Supports Virtual Cable Diagnostics by Marvell™ and fiber transceiver diagnostics to provide advanced troubleshooting capabilities for your cable infrastructure Integrated LEDs for improved visual monitoring and analysisPerformance:
MAC addresses: 16K Packet buffer memory: 1 MbVLAN:
Supports up to 4096 port-based VLANs. Honors all 4096 VLAN tags.Quality of service:
Honor 802.1p values and honor IP DSCP values Supports strict priority and configurable weighted round robin (WRR) scheduling across queuesLink aggregation:
Industry-standard link aggregation adhering to IEEE 802.3ad standards (static and dynamic, LACP) Supports 12 link aggregation groups and up to 4 ports per groupManagement:
Local password and restricted IP addresses for secure access to the switch Port mirroring provides the capability of mirroring 8 source ports and VLAN mirroring to improve network traffic monitoring and troubleshooting.Internal DHCP Server
DHCP client support allows for simplified IP address assignment when used with a DHCP server Switch software can be easily uploaded to the switch through the web-management interface Configurations can be easily uploaded to and from the switch through the intuitive web-management interface Port statistics available through industry-standard RMON Switch is factory-configured as an unmanaged switch, but can be easily configured as a web-managed switch with the push of a button Jumbo frame support for packets up to 9,000 bytes Broadcast storm control to help eliminate network traffic storms Environmental operating conditions: 100% Lead-free Operating temperature: 32° to 113°F (0° to 45°C) Storage temperature: -20º C to 70º C (-4º F to 158º F) Operating relative humidity: 10% to 90% noncondensingSpecification top
top| General | |
| Product Type | Switch |
| Usage | Office |
| Product Line | X-Series |
| Speed | Gigabit |
| Form Factor | Rack-mountable |
| Management Type | Web Managed |
| Supported Standards | IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.1v IEEE 802.1w IEEE 802.1x IEEE 802.3ac IEEE 802.3ad IEEE 802.3x |
| Features | IPv4 and IPv6 Static routing IPv6 support |
| Ports | |
| Port Type | SFP Gigabit LAN |
| Total Ports | 18 |
| Gigabit RJ45 Ports | 16 |
| Gigabit SFP Ports | 2 |
| Performance | |
| Switching Method | Store-and-Forward |
| Switching Capacity | 36 Gbps |
| MAC Address Table | 16 K |
| Physical Specification | |
| Width | 250 mm |
| Height | 209 mm |
| Depth | 41 mm |
| Weight | 1,760 grams |
