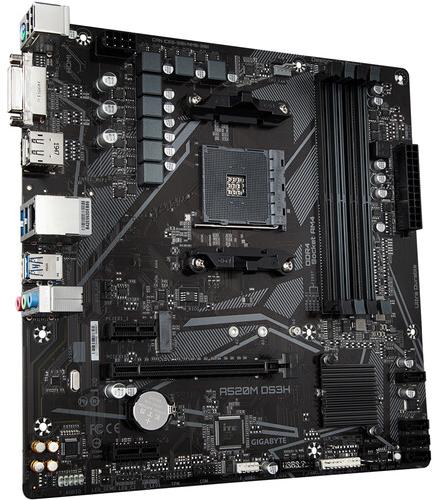

Gigabyte AMD A520 AM4 Micro-ATX Motherboard (GA-A520M-DS3H)
• 128GB Max DDR4 Memory
• 1x PCIe x16, 2x PCIe x1
• 1x M.2, 4x SATA 3.0, 0/1/10 RAID
• 4x USB 2.0, 6x USB 3.2 Type A
• 1x DVI-D, 1x HDMI, 1x DisplayPort
• Realtek GbE LAN chip (1000 Mbit/100 Mbit)
• Realtek Audio CODEC Audio Chip, 7.1 Audio Channel
• iTE I/O Controller Chip
• Support for APP Center, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install
Our price: | R 2,029.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-A520M-DS3H |
| Product Type | Desktop |
| Processor Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD A520 |
| Supported Processors | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| CPU Gen Support | 3rd Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 5000 series processors |
| Max System Memory | 128 GB |
| ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 4 |
| D-Sub (VGA) | <not specified>
|
| DVI | 1 |
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | <not specified>
|
| PCI Express x16 2.0 Compliant | 1 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 |
| PCI Express x1 | 2 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| Graphics System | |
| Integrated Video | Yes Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors |
| Supported Monitors | 3 |
| Multi-GPU Support | <not specified>
|
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| Addressable LED Strip Headers | 2 1 x addressable LED strip header 1 x RGB LED strip header |
| USB 2.0 Headers | 1 |
| USB 3.2 Headers | 1 |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Serial Port Header | 1 |
| Q Flash Plus Button | 1 |
| Networking | |
| Wired LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Storage System | |
| M.2 Ports | 1 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| SATA 3.0 Ports | 4 |
RAID  |
0/1/10 |
| Optane Support | <not specified>
|
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek Audio CODEC |
| Channels | 7.1 To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| Dimensions | |
| Width | 0 mm |
| Length | 0 mm |
