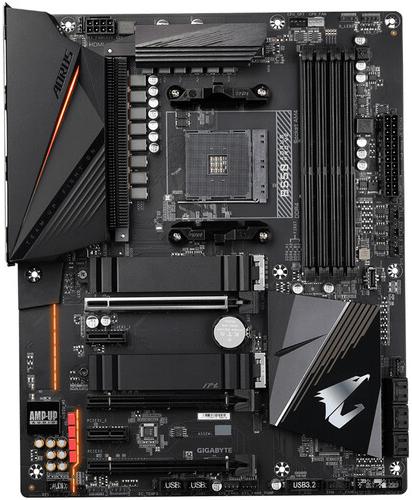

Gigabyte Aorus Series AMD B550 Socket AM4 3rd Gen ATX Motherboard (B550 AORUS PRO V2)
• ATX Form Factor • AMD B550 Chipset • AMD AM4 Socket • 4 x Dual-Channel DDR4 DIMMs • 6 x SATA III, 2 x M.2 • 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 Slots • 2 x PCIe 3.0 x1 Slots • USB 3.2 Gen 1 & Gen 2 Support • 2.5 Gigabit Ethernet • Windows 10 (64-Bit) Support
NIVO#: 73439Mnf.#: GA-B550-AORUS-PRO V2
Warranty: 3 years
Our price:
R 3,969.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
GA-B550-AORUS-PRO V2
Product Line
Aorus Series
Product Type
Desktop
Processor Socket
AM4
Form Factor
ATX
Chipset
AMD B550
Supported Processors
AMD Ryzen 5000 Series / Ryzen 5000 G-Series / 3rd Generation AMD Ryzen processors / 3rd Gen AMD Ryzen with Radeon Graphics processors
CPU Gen Support
3rd Gen

Memory
Memory Channels
Dual
Memory Type
DDR4
Memory Slots
4
Memory Bandwidth
DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz
3rd Gen AMD Ryzen Processors
DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory
AMD Ryzen 5000 series Processors
Max System Memory
128 GB
ECC Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Rear Panel Connectors
USB 2.0
6
USB 3.2 Type-A
4
2 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
USB 3.2 Type-C
1
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
1
LAN (RJ45)
1
S/PDIF Ports
1 x Optical
OFC Audio Jacks
5

Expansion Slots
PCI Express x16/x8/x4
3
1 x PCI Express x16 slot (PCIEX16)
1 x PCI Express x16 slot (PCIEX4)
1 x PCI Express x16 slot (PCIEX2)
PCI Express x1
2

Graphics System
Integrated Video
<not specified>
Multi-GPU Support
<not specified>

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
1
System/Chassis FAN Headers
6
2-pin Thermal Sensor Connector
2
TPM Module Connector
1
Clear CMOS Jumper
1
Thunderbolt Connector
1
1 x Thunderbolt™ add-in card connector
CPU FAN Connector
1
Water Pump Header
1
Addressable LED Strip Headers
2
4-pin RGB LED Connector
3
USB 2.0 Headers
2
USB 3.2 Headers
1
USB Type C Header
1
Front panel audio header
1
Front Panel Connector
1

Networking
Wired LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Storage System
M.2 Ports
2
SATA 3.0 Ports
6
RAID
0/1/10
Optane Support
<not specified>

Audio
Integrated Audio
Yes
Audio Chip
Realtek ALC1220-VB codec
Channels
2/4/5.1/7.1
