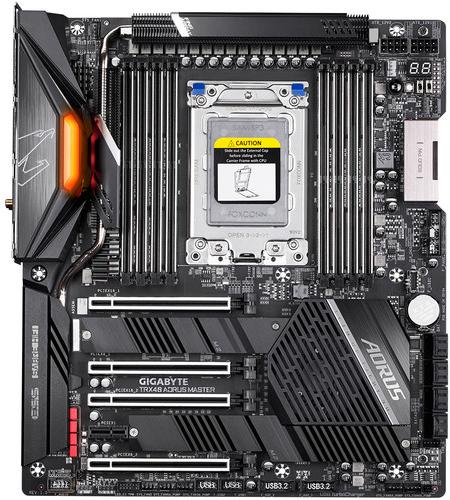

Gigabyte Aorus Series AMD TRX40 TRX4 E-ATX Motherboard (GA-TRX40-AORUS-MASTER)
• E-ATX Form Factor • AMD TRX40 Chipset • TRX4 Socket • 8 x Quad-Channel DDR4-4400 (OC) • 8 x SATA III, 3 x M.2 • 4 x PCIe 4.0 x16, 1 x PCIe 4.0 x1 Slot • Realtek ALC1220-VB 7.1-Channel Audio • Gigabit Ethernet LAN, 5GbE LAN • Wi-Fi 6 (802.11ax), Bluetooth 5.0 • NVIDIA SLI, AMD CrossFire Support
NIVO#: 73398Mnf.#: GA-TRX40-AORUS-MASTER
Warranty: 3 years
Our price:
R 5,949.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
GA-TRX40-AORUS-MASTER
Product Line
Aorus Series
Product Type
Desktop
Processor Socket
TRX4
Form Factor
E-ATX
Chipset
AMD TRX40
Supported Processors
Support 3rd Generation AMD Ryzen Threadripper processors
CPU Gen Support
3rd Gen

Memory
Memory Channels
Quad
Memory Type
DDR4
Memory Slots
8
Memory Bandwidth
DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max System Memory
256 GB
ECC Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Rear Panel Connectors
USB 2.0
2
USB 3.1 Type-C
1
USB 3.2 Type-A
5
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
<not specified>
LAN (RJ45)
<not specified>
S/PDIF Ports
1 x Optical
OFC Audio Jacks
5
SMA antenna connectors (2T2R)
2

Expansion Slots
PCI Express x16/x8/x4
4
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
PCI Express x1
1

Graphics System
Integrated Video
<not specified>
Multi-GPU Support
Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 3-Way/2-Way NVIDIA SLI technologies

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
2
System/Chassis FAN Headers
2
2-pin Thermal Sensor Connector
2
TPM Module Connector
1
Clear CMOS Jumper
1
CPU FAN Connector
1
4-pin Water Pump Fan Connector
4
Addressable LED Strip Headers
2
4-pin RGB LED Connector
2
On-Board Power Button
1
On-Board Reset Button
1
Noise Detection Header
1
USB 2.0 Headers
2
USB 3.2 Headers
2
USB Type C Header
1
Front panel audio header
1
Front Panel Connector
1
BIOS Switches
2

Networking
Wired LAN
1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN)
1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
Wireless LAN
Intel Wi-Fi 6 AX200
Bluetooth
Yes

Storage System
M.2 Ports
3
SATA 3.0 Ports
8
RAID
0/1/10
Optane Support
<not specified>

Audio
Integrated Audio
Yes
Audio Chip
1 x Realtek ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
1 x Realtek ALC4050H codec+1 x Realtek ALC1220-VB codec (Rear audio)
Channels
2/4/5.1/7.1
