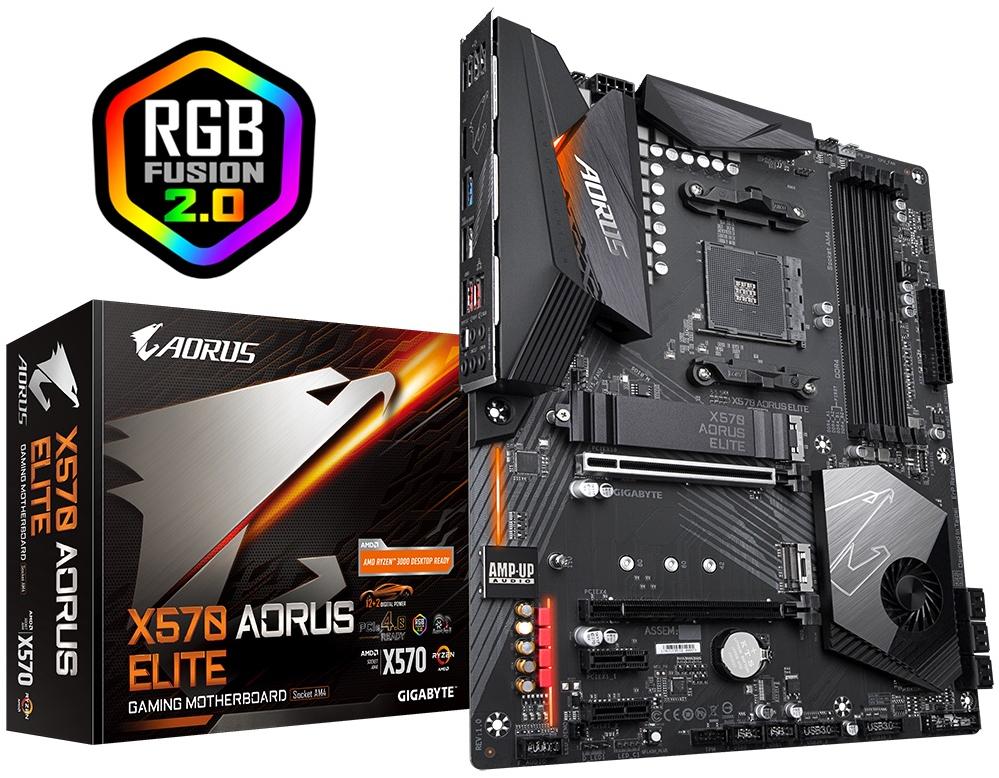

Gigabyte Aorus Series AMD X570 Socket AM4 3rd Gen ATX Motherboard (X570 AORUS ELITE)
• 12+2 Phases Digital VRM with DrMOS
• 128GB Max Memory
• 4 x DDR4 4733(O.C.) DIMM sockets, Dual channel, Support for ECC Un-buffered DIMM 1Rx8/2Rx8, Support for Extreme Memory Profile (XMP)
• 2 x PCIe X16 Slots, 2 x PCI-E 4.0 X1 Slots
• 2 x M.2 connector (Socket 3, M key, type)
• 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10
• Intel GbE LAN chip (10/100/1000 Mbit)
• 7.1 Channel High Definition Audio
• AMD Quad-GPU CrossFire
• 2-Way AMD CrossFire technologies
• Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card
Our price: | R 6,599.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-X570-AORUS-ELITE |
| Product Line | Aorus Series |
| Product Type | Desktop |
| Processor Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD X570 |
| Supported Processors | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
| CPU Gen Support | 2nd Gen 3rd Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules |
| Max System Memory | 128 GB |
| ECC Support | Yes |
| Rear Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.2 Type-A | 6 4 x USB 3.2 Gen 1 Type-A ports 2 x USB 3.2 Gen 2 Type-A ports (red) |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 |
| PCI Express x1 | 2 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 - * For 3rd Gen Only |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | 2-Way AMD CrossFire technologies AMD Quad-GPU CrossFire |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| Addressable LED Strip Headers | 2 |
| 4-pin RGB LED Connector | 3 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 2 2 x USB 3.2 Gen 1 headers |
| USB Type C Header | 1 USB 3.2 Gen 2 Type-C |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Networking | |
| Wired LAN | Realtek GbE LAN |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/10 |
| Optane Support | - |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC1200 codec |
| Channels | 7.1 |
Customer Reviews top
topBe the first to Review this Product
