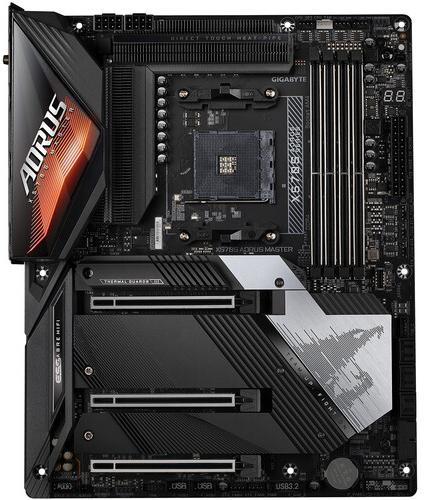

Gigabyte Aorus Series AMD X570 Socket AM4 ATX Motherboard (X570S AORUS MASTER)
• 128GB Max Support
• 4 x DDR4 DIMM sockets, Dual-Channel
• Support for DDR4 5400(O.C.)
• 6 x SATA III, RAID 0,1,10
• 4 x M.2 M-Key Type 2242/2280/22110
• 3 x PCIe 4.0 x16 Slots
• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Intel Wi-Fi 6E AX210(802.11ax), Bluetooth 5.2
• AMD Quad-GPU & 2-Way CrossFire
• 5 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
• 1 x USB 3.2 Gen 2 Type-C header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers
• Windows 10 (64-Bit)
Warranty: 3 years
Our price: | R 9,799.96 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-X570S-AORUS-MASTER |
| Product Line | Aorus Series |
| Product Type | Motherboard |
| Processor Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD X570 |
| Supported Processors | AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz |
| Max System Memory | 128 GB |
| ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules |
| Rear Panel Connectors | |
| USB 2.0 | 4 4 x USB 2.0/1.1 ports |
| USB 3.2 Type-A | 7 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports |
| USB 3.2 Type-C | 1 USB 3.2 Gen 2x2 Type-C |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | <not specified>
|
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| SMA antenna connectors (2T2R) | 2 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset |
| PCI Express x1 | <not specified>
|
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 2 |
| System/Chassis FAN Headers | 8 4 x system fan headers 4 x system fan/water cooling pump headers |
| 2-pin Thermal Sensor Connector | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 1 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| Addressable LED Strip Headers | 2 |
| 4-pin RGB LED Connector | 3 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header |
| On-Board Power Button | 1 |
| On-Board Reset Button | 1 |
| Noise Detection Header | 1 |
| USB 2.0 Headers | 2 2 x USB 2.0/1.1 headers |
| USB 3.2 Headers | 2 2 x USB 3.2 Gen 1 headers |
| USB Type C Header | 1 1 x USB Type-C header, with USB 3.2 Gen 2 support |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Networking | |
| Wired LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 4 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/10 |
| Optane Support | <not specified>
|
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC1220-VB audio CODEC |
| Channels | 2/4/5.1/7.1 |
