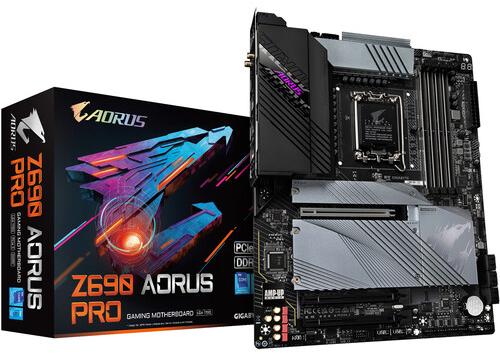

Gigabyte Aorus Series Intel Z690 Socket LGA1700 ATX Motherboard (Z690 AORUS PRO)
• ATX Form Factor
• Intel Z690 Chipset
• LGA1700 Socket
• 4 x Dual-Channel DDR5 RAM slots
• 6 x SATA III, 4 x M.2
• 1 x PCIe 5.0 x16 slot, 2 x PCIe 3.0 x16
• Wi-Fi 6 (802.11ax) | Bluetooth 5.2
• Intel 2.5GbE LAN
• USB 3.2 Gen 1, Gen 2, Gen 2x2
• Realtek 7.1-Channel Audio
Our price: | R 7,799.96 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-Z690-AORUS-PRO |
| Product Line | Aorus Series |
| Product Type | Motherboard |
| Processor Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel Z690 |
| Supported Processors | 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors |
| CPU Gen Support | 12th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz |
| Max System Memory | 128 GB |
| ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Rear Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.2 Type-A | 8 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports |
| USB 3.2 Type-C | 1 |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | <not specified>
|
| Display Port | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 2 |
| SMA antenna connectors (2T2R) | 2 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 |
| PCI Express x1 | <not specified>
|
| Graphics System | |
| Integrated Video | Integrated Graphics Processor-Intel HD Graphics |
| Multi-GPU Support | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| 6-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 6 |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 2 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| Addressable LED Strip Headers | 2 |
| 4-pin RGB LED Connector | 2 |
| On-Board Power Button | 1 |
| On-Board Reset Button | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| USB Type C Header | 1 |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Q Flash Plus Button | 1 |
| Networking | |
| Wired LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN | Intel Wi-Fi 6 AX200 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 4 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC4080 CODEC |
| Channels | 7.1 |
