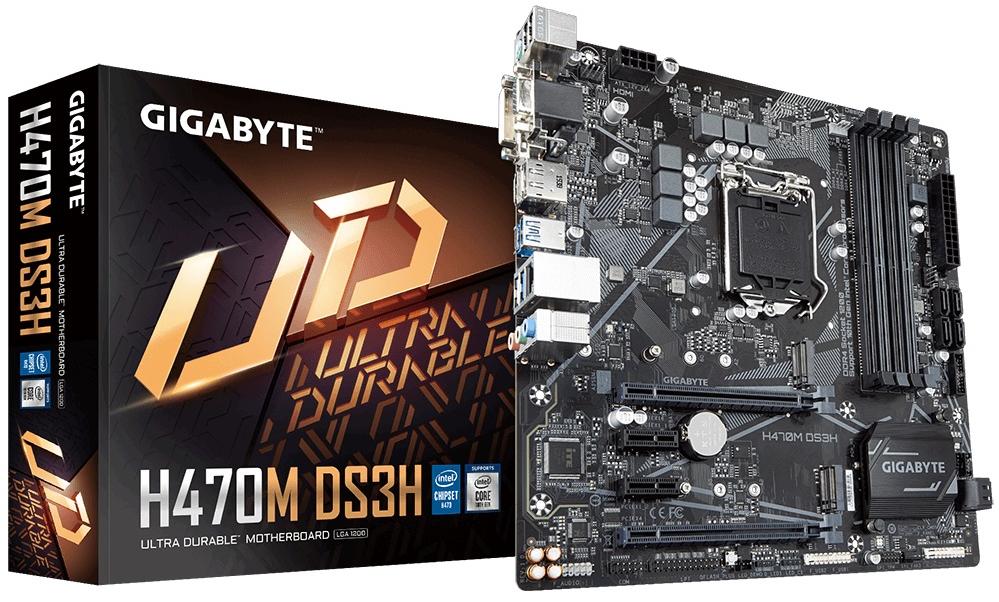

Gigabyte UD Series Intel H470 Socket LGA1200 Micro ATX Motherboard (H470M DS3H)
• 128GB DDR4 Max Memory
• 4 x DDR4 2933MHz DIMM sockets, Dual channel, Support for non-ECC and ECC Un-buffered DIMM, Support for XMP
• 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 1 x DisplayPort
• 2 x PCI Express x16, 2 x PCI Express x1 slots
• 2 x M.2 connector (Socket 3, M key)
• 6 x SATA 6Gb/s connectors, Support for RAID 0/1/5/10, Intel Optane Memory Ready
• Back Panel: 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 2.0/1.1 ports
• Intel GbE LAN chip (1000 Mbit/100 Mbit)
• 7.1 Channel High Definition Audio
• AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Our price: | R 3,949.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-H470M-DS3H |
| Product Line | UD Series |
| Product Type | Desktop |
| Processor Socket | LGA1200 |
| Form Factor | Micro-ATX |
| Chipset | Intel H470 |
| Supported Processors | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| CPU Gen Support | 10th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 2933/2666/2400/2133 MHz memory modules |
| Max System Memory | 128 GB |
| ECC Support | Yes |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 3 3 x USB 3.2 Gen 1 Type-A ports |
| USB 3.2 Type-C | 1 1 x USB 3.2 Gen 1 Type-C |
| D-Sub (VGA) | 1 |
| DVI | 1 |
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1 x PCI Express x16 slot, running at x16 1 x PCI Express x16 slot, running at x4 |
| PCI Express x1 | 2 2 x PCI Express x1 slots |
| Graphics System | |
| Integrated Video | via Intel CPU |
| Supported Monitors | 3 |
| Multi-GPU Support | 2-Way AMD CrossFire technologies AMD Quad-GPU CrossFire |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 3 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 2 |
| CPU FAN Connector | 1 |
| Addressable LED Strip Headers | 1 |
| 4-pin RGB LED Connector | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Serial Port Header | 1 |
| Parallel Port Header | 1 |
| Networking | |
| Wired LAN | Intel GbE LAN chip |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC887 codec |
| Channels | 7.1 |
Customer Reviews top
topBe the first to Review this Product
