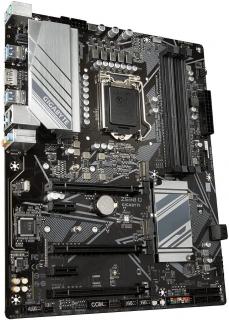

Gigabyte UD Series Intel Z590 Socket LGA1200 ATX Motherboard (Z590 D)
• Supports 11th and 10th Gen Intel Core Series Processors • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs • Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs • Shielded Memory Routing for Better Memory Overclocking • Enlarged VRM Heatsink with Multi-Cut to increased surface contact • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
NIVO#: 73459Mnf.#: GA-Z590-D
Line: UD SeriesModel: Z590 D
Warranty: 3 years
Our price:
R 4,009.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
GA-Z590-D
Product Line
UD Series
Product Type
Desktop
Processor Socket
LGA1200
Form Factor
ATX
Chipset
Intel Z590
Supported Processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
CPU Gen Support
11th Gen
10th Gen

Memory
Memory Channels
Dual
Memory Type
DDR4
Memory Slots
4
Memory Bandwidth
DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Max System Memory
128 GB
ECC Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Rear Panel Connectors
USB 3.2 Type-A
6
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
<not specified>
LAN (RJ45)
1
OFC Audio Jacks
3
PS/2 Mouse
1
PS/2 Keyboard
1

Expansion Slots
PCI Express x16/x8/x4
3
1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
PCI Express x1
2

Graphics System
Integrated Video
Integrated Graphics Processor-Intel HD Graphics
Multi-GPU Support
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
1
4-pin ATX 12V Power Connector
1
System/Chassis FAN Headers
3
TPM Module Connector
1
Clear CMOS Jumper
1
Thunderbolt Connector
2
2 x Thunderbolt add-in card connectors
CPU FAN Connector
1
Addressable LED Strip Headers
1
4-pin RGB LED Connector
1
S/PDIF Header
1
USB 2.0 Headers
2
USB 3.2 Headers
1
Front panel audio header
1
Front Panel Connector
1
Serial Port Header
1
Q Flash Plus Button
1

Networking
Wired LAN
Realtek GbE LAN chip (1 Gbit/100 Mbit)

Storage System
M.2 Ports
2
SATA 3.0 Ports
6
RAID
0/1/5/10
Optane Support
Yes

Audio
Integrated Audio
Yes
Audio Chip
Realtek Audio CODEC
Channels
2/4/5.1/7.1

Customer Reviews top
Be the first to Review this Product
