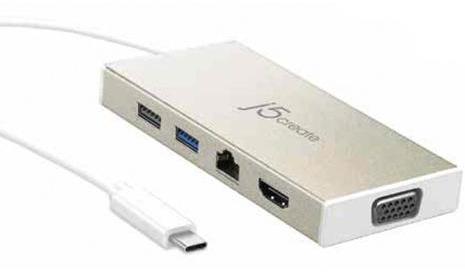

JCD376 USB 3.1 TYPE-C MINI DOCK

The JCD376 USB 3.1 Type-C Mini Dock provides extra connectivity for your computer. These pocket-sized multi- adapters allow you to add an additional USB 3.1/3.0/2.0 computer peripheral, HDMI/VGA monitor or gigabit Ethernet through your USB port. USB type–C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB type–C has a slim and reversible design, so there is no wrong way to plug it in. USB type–C offers greater power delivery and faster data transfer rates of up to 10 Gbps.

4K Ultra HD

High definition HDMI 2.0 output with 3840 x 2160 @ 30 HZ max resolution. Perfect for gaming or streaming movies on the TV. Extend your visual workplace with excellent dual-video HDMI

HDMI or VGA output port

HDMI resolution up to 4K @ 30Hz; VGA up to 1920 x 1200 @ 60 Hz

Transfer Speed

USB Type-C downstream port supports 900 mA charging, power delivery 2.0 max 60W and data transfer up to 5 Gbps

No external power adapter needed

Optional power adapter can be connected for charging a laptop or other power consumption device

Adds Gigabit Ethernet, USB 3.0 & USB2.0 and an HDMI or VGA video port over a single USB-C connection. Connect to a computer or tablet with a USB type-C port

Plug and play

No need for any software installation or configuration

Environmentally friendly material

Aluminum enclosure that is non-toxic and recyclable

Connect anywhere

Small, compact, and lightweight. Slip it into your laptop bag and take it with you anywhere

Features

• Dual HDMI/VGA individual display output
• Supports VGA 1920 x 1200 @ 60 Hz
• Supports HMDI 4K @ 30 Hz
• USB 3.1 Type-C port x 2
• Quickly add Gigabit Ethernet port

System Requirments

• Available USB type-C port (USB 3.1 is recommended)
• Available DisplayPort alt mode over USB type-C port
• Available USB power delivery 2.0 over USB type-C to support upstream charging
• HDMI: DisplayPort v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
• VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 @ 60 Hz

Interface

Host Interface

• USB 3.0 Type-C male Type-C Connector

Video Interface

• HDMI Female Connector x 1
• VGA-DB 15 pin Female Connector x 1

Type-C Port

• USB Type-C female connector

Ethernet Port

• RJ-45 female connector(gigabit Ethernet)

USB Port

• USB 3.1 type-A female connector x 1
• USB 2.0 type-A female connector x 1

Power

• Power Mode - Bus-powered or self-powered

Function

• HDMI - Display resolution: 4K @ 30 Hz
• VGA - Display resolution: 1920 x 1200 @ 60 Hz
• Type-C - Upstream & downstream: charging, power delivery 2.0 and data transfer
• USB - USB 3.1 Gen1 5 Gbps , USB 2.0 480 Mbps
• Ethernet - Transfer rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab,IEEE 802.3x

Modes:

• Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
• Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
• Supports Jumbo Frame
• Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Note:

• If you are using a high-powered USB device please attach the type-C power adapter to the JCD376 power delivery port to ensure maximum performance
• To ensure files copy completely, do not remove the type-C power adapter while copying files

• JCD376 USB 3.1 type-C fully functional mini dock
• Quick installation guide
