J5 Create JDA156 Mini DisplayPort to Dual HDMI Adapter
• Supports resolutions up to 4k @ 30Hz • Extends single mDP to dual display • Enables 2 monitors to work simultaneously with extended mode, expansion mode or mirror mode • No drivers needed, simply plug & play • Perfect for Microsoft Surface Pro and Lenovo ThinkPad
NIVO#: 59412
Model: JDA156
Warranty: 1 year
Our price:
R 879.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

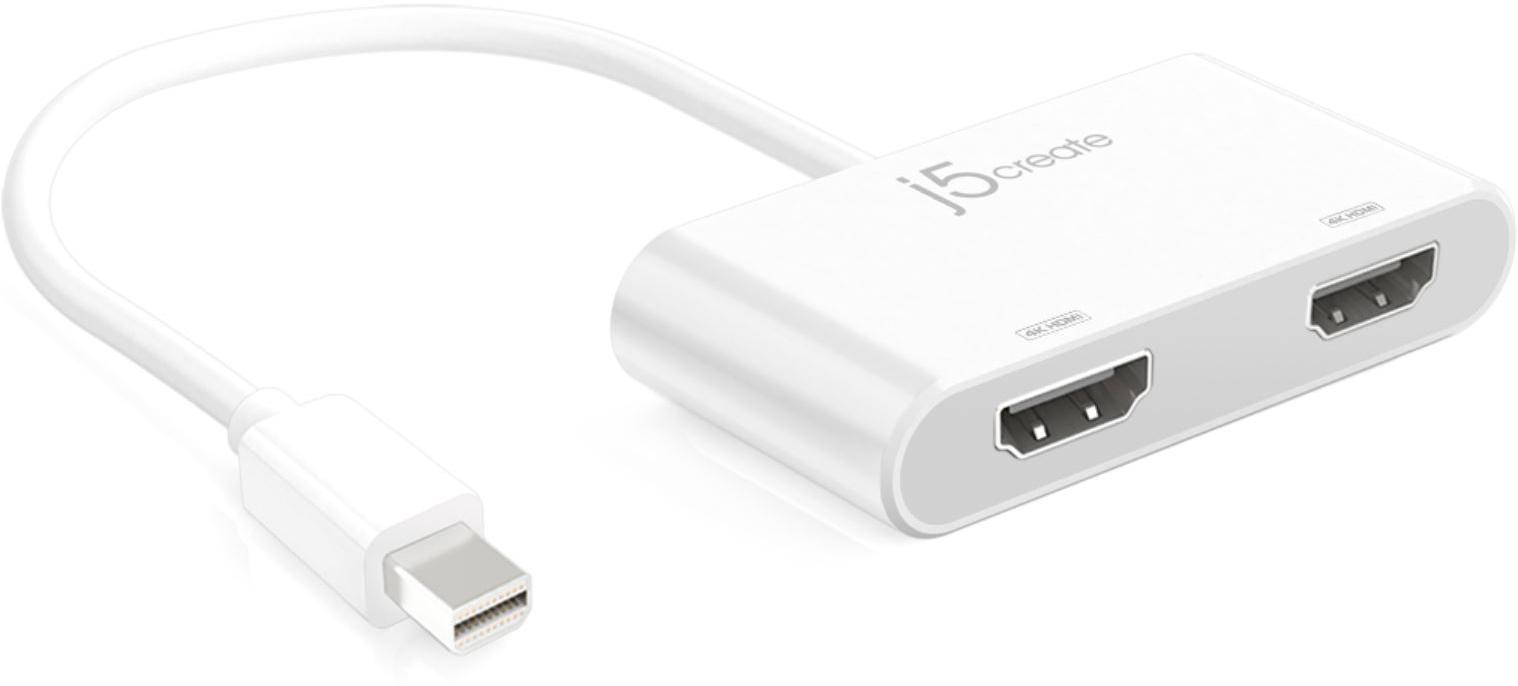

J5 Create JDA156 Mini DisplayPort to Dual HDMI Adapter

The j5create JDA156 mini DisplayPort to Dual HDMI Adapter allows you to connect up to two HDMI monitors from a single Mini DisplayPort output. The JDA146/156 utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at up to 4k @ 30Hz each with DP 1.2.



Features

  • Supports resolutions up to 4k @ 30Hz
  • Extends single mDP to dual display
  • Enables 2 monitors to work simultaneously with extended mode, expansion mode or mirror mode
  • No drivers needed, simply plug & play
  • Perfect for Microsoft Surface Pro and Lenovo ThinkPad

Specifications

  • Connector Type - Passive
  • Host Interface - Mini-DisplayPort (20 pin) Male
  • Video Interface
    • DisplayPort (20 pin) Female
    • HDMI (19 pin) Female
  • Power Source - USB-Powered
  • Housing Material - Plastic

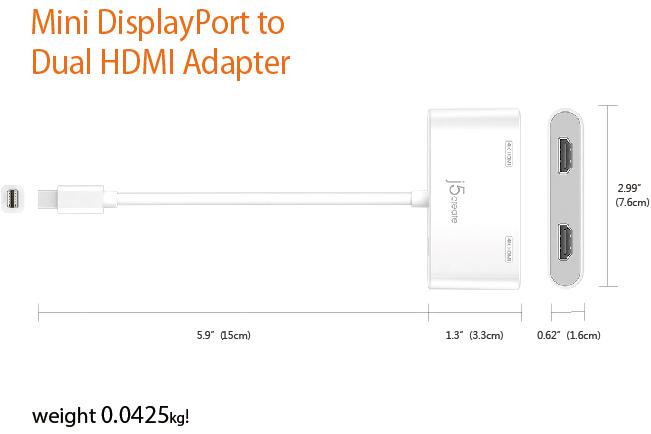

  • Dimensions - Main body: 7.6 (W) x 3.3 (H) x 1.6 (D) cm, Cable length: 5.9 in./15 cm
  • Weight - Approximately 0.0425 kg

System Requirements

  • The graphics card of DisplayPort 1.2 with MST+HBR2
    • Extended dual HDMI supported by Windows only Microsoft Surface Pro2, Pro3, Pro4, Book (Check here...)
    • Mac OS X does not support extended mode

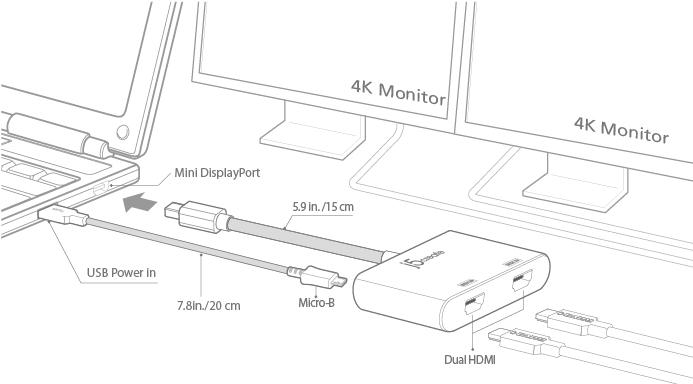

  • Requires an external USB power source (USB cable included)
What's in the Box top
  • Mini DisplayPort to Dual HDMI Adapter (JDA156)
  • 7.8 in. / 20 cm USB cable
  • Quick Installation Guide
Specification top
General
Manufacturer Code
JDA156
Model
JDA156
Product Type
Display Adapter
Adapter Type
Mini DisplayPort to HDMI

Specifications
Connector 1 Gender
Male
Connector 1 Type
Mini DisplayPort
Connector 1 No of Connectors
1
Connector 2 Gender
Female
Connector 2 Type
HDMI
Connector 2 No of Connectors
2
