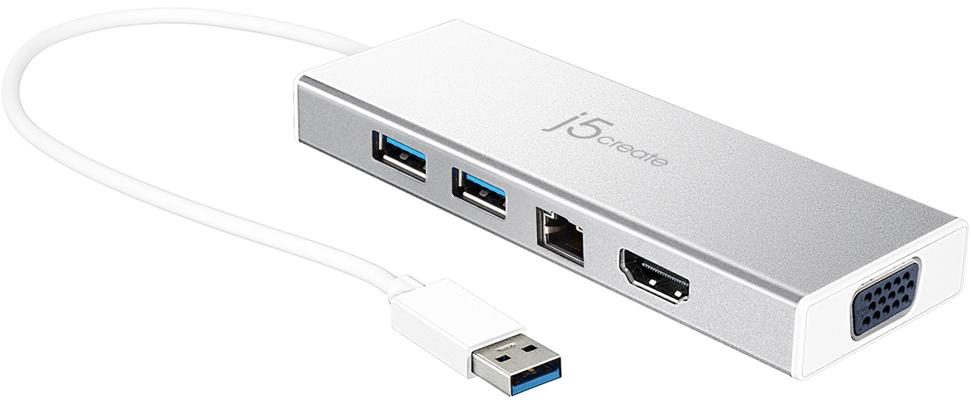

J5 Create JUD380 USB 3.0 Mini Dock

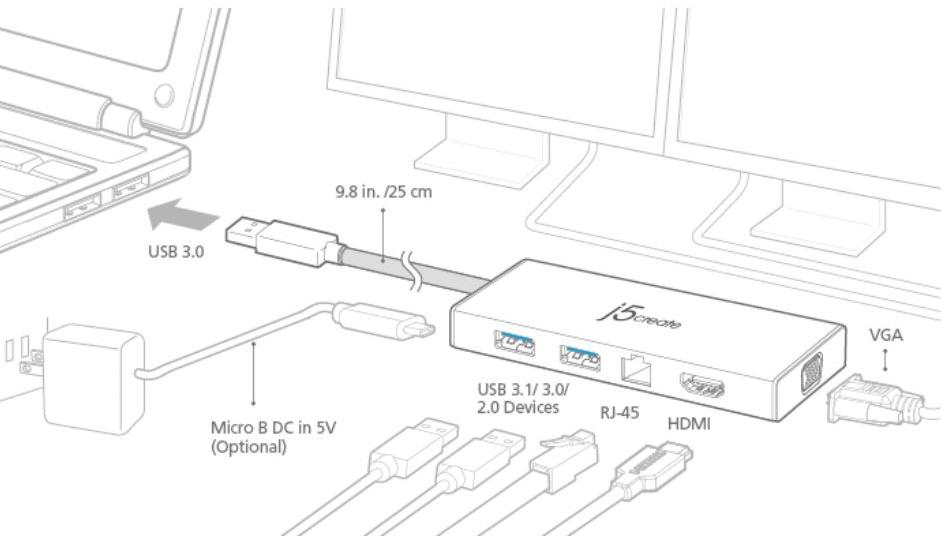

• Host Interface - USB 3.0 Male Type-A • USB Downstream Port - USB 3.0 Female Type-A • Interfaces - VGA, HDMI (dual display), RJ45 • Power In - USB Micro-B • Cable Length 20cm • Acts as an external dual monitor display for your MAC or PC
NIVO#: 60201
Model: JUD380
Warranty: 1 year
Our price:
R 1,279.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

UD380 USB 3.0 Mini Dock

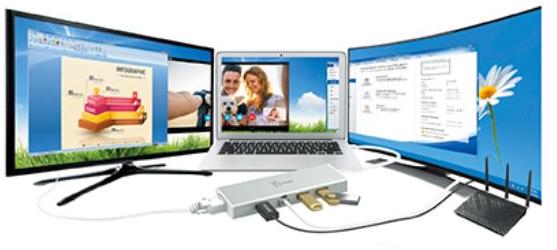

The JUD380 acts as an external dual monitor display for your MAC or PC. It allows you to add an additional monitor/display through your USB 3.0 port. No need to open up the computer to add an expensive video card, with the USB 3.0 Mini Dock you simply load the drivers, plug the adapter into the USB port, then plug in the VGA or HDMI monitor cable into the adapter and you are ready. It supports three viewing modes. Primary mode, allows you to have individual applications open on each monitor, vastly improving productivity. Extended mode allows you to extend your desktop across multiple displays, great for spreadsheets. Mirroring mode is used to clone one screen onto another, ideal for presentations. With “Plug & Play” functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.

Interface

  • Host Interface - USB 3.0 Male Type-A Connector
  • USB Downstream Port - USB 3.0 Female Type-A Connector
  • Video Interface - VGA-DB 15 pin Female Connector , HDMI Type-A Female Connector
  • Ethernet Interface - Gigabit Ethemet RJ-45 Female Connector

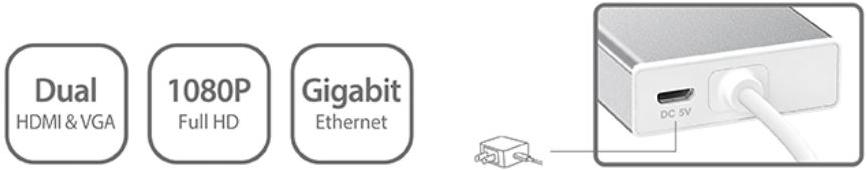

  • Power In - USB Micro-B Female Connector

Power

  • Power Mode - Bus-powered and self-powered
  • Power Consumption - ≧900mA

Physical Specifications

  • Housing Material - Aluminum
  • Dimensions - Main body: 119.6(W)x 14.15(H)x 42.8(D) mm , Cable length: 200 mm
  • Weight - Approximately 82.6 g

System Requirements

  • Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
  • Mac OS X 10.8 or later
  • Available USB 3.0/2.0 port (USB 3.0 recommended)
  • One 2K (2048 x 1152 @ 60Hz) full-screen video playback
  • CPU: Intel Core i5 Quad Core
  • RAM: 4 GB memory or higher
  • Two 2K (2048 x 1152 @ 60Hz) full-screen video playback
  • CPU: Intel Core i7 Quad Core
  • RAM: 8 GB memory or higher
What's in the Box top
JUD380 USB™ 3.0 Mini Dock Driver CD Quick Installation Guide
Specification top
General
Product Type
Multi-Port Hub
Model
JUD380
Manufacturer Code
JUD380
Description
j5 Create JUD380 mini docking station - USB3.0 type-A universal docking station - HDMi + D-sub + 1x gigabit lan + 2x USB 3.0 downstream hub with fast charge port
Power
USB Power
USB Micro B Female Connector

Specifications
USB Host Interface
USB3.0
USB Ports Interface
USB 3.0 Type-A
Number of USB Ports
2
downstream hub with fast charge port
Adapter Interface
RJ45
HDMI
VGA
DB 15 pin Female Connector

Operating System
Windows
Yes
Mac
Yes

Physical Dimensions
Width
120 mm
Height
15 mm
Depth
43 mm
Weight
83 grams

Customer Reviews top
Be the first to Review this Product
