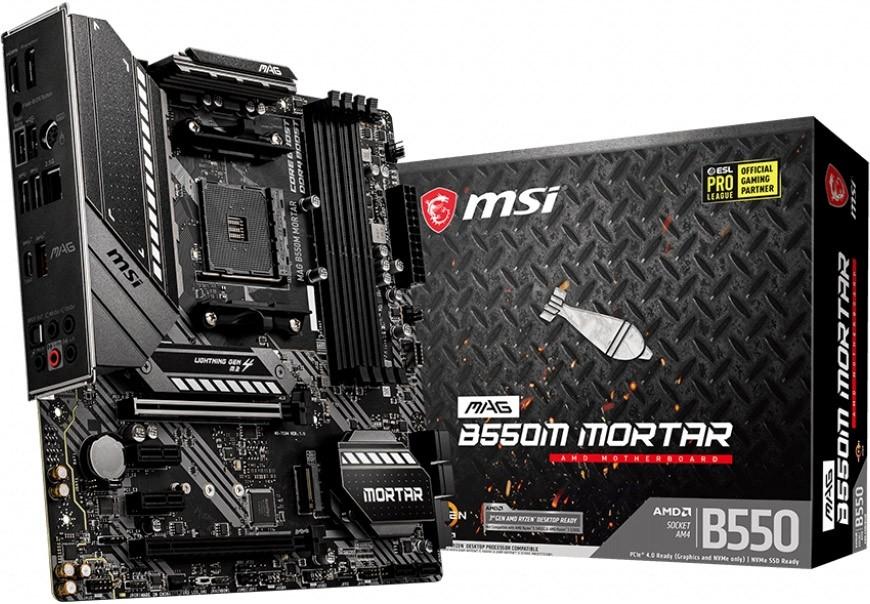

MSI MAG Series AMD B550 Socket AM4 3rd Gen Micro ATX Motherboard (MAG B550M MORTAR)
• Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost
• 128GB DDR4 Max Memory
• 4 DIMMs, Dual Channel DDR4-4400+(OC)Mhz
• 1x PCIe 3.0/ 4.0 x16 slot (PCIe x1), 1x PCIe 3.0 x16 slot (PCIe x4), 2x PCIe 3.0 x1 slots
• 1 x HDMI, 1 x DisplayPort
• Rear USB - 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-C, 2x USB 2.0
• 6x SATA 6Gb/s ports, Supports RAID 0,1 and 10
• 2x M.2 slots (Key M) Supports 2242/ 2260/ 2280
• 1x Realtek RTL8125B 2.5Gbps LAN controller
• 7.1-Channel High Definition Audio
• Support 2-way AMD CrossFire Technology
Our price: | R 4,169.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | MAG B550M MORTAR |
| Product Line | MAG Series |
| Product Type | Desktop |
| Processor Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Supported Processors | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| CPU Gen Support | 3rd Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
| Max System Memory | 128 GB |
| ECC Support | - |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 3 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Type-C | 1 1 x USB 3.2 Gen 2 10Gbps (Type-C) |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1x PCIe 3.0/ 4.0 x16 slot (PCIe x1) 1x PCIe 3.0 x16 slot (PCIe x4) |
| PCI Express x1 | 2 2x PCIe 3.0 x1 slots |
| Graphics System | |
| Integrated Video | - |
| Multi-GPU Support | AMD 2-Way CrossFire Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 3 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| 4-pin RGB LED Connector | 1 |
| 3-pin RAINBOW LED Connectors | 2 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 1x USB 3.2 Gen 1 5Gbps connector |
| USB Type C Header | 1 1x USB 3.2 Gen 1 5Gbps Type-C port |
| Front panel audio header | 1 |
| Front Panel Connector | 2 |
| Chassis Intrusion Connector | 1 |
| Networking | |
| Wired LAN | Realtek RTL8125B 2.5Gbps LAN |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/10 |
| Optane Support | - |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC1200 Codec |
| Channels | 7.1 |
