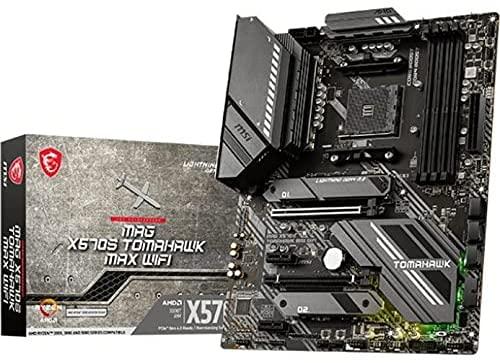

MSI MAG Series AMD X570 Socket AM4 ATX Motherboard (X570S TOMAHAWK MAX WIFI)
• AM4 Socket
• AMD X570 Chipset
• 4x DDR4 memory slots, support up to 128GB
• 2x PCIe x16 slot, 2x PCIe 3.0 x1 slots
• Supports AMD CrossFire Technology
• 6x SATA 6Gb/s ports (from AMD X570 Chipset), 2x M.2 slots (Key M)
• Supports RAID 0, RAID 1 and RAID 10
• Realtek ALC4080 7.1 Codec
• Intel Wi-Fi 6E AX210, 1x Realtek 8125B 2.5Gbps LAN Controller
• Supports Bluetooth 5.2
• ATX Form Factor
Warranty: 3 years
Our price: | R 6,699.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | MSI MAG X570S TOMAHAWK MAX WIFI |
| Product Line | MAG Series |
| Product Type | Motherboard |
| Processor Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD X570 |
| Supported Processors | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz |
| Max System Memory | 128 GB |
| ECC Support | Supports non-ECC, un-buffered memory |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 5 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x USB 3.2 Gen 2 10Gbps (Type-A) 2x USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Type-C | 1 |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 |
| PCI Express x1 | 1 |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | Supports AMD CrossFire Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| 4-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 4 |
| TPM Module Connector | 1 |
| CPU FAN Connector | 1 |
| Water Pump Header | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 2 |
| USB Type C Header | 1 |
| Front panel audio header | 1 |
| Serial Port Header | 1 |
| Chassis Intrusion Connector | 1 |
| Networking | |
| Wired LAN | 1x Realtek 8125B 2.5Gbps LAN Controller |
| Wireless LAN | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/10 |
| Optane Support | <not specified>
|
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC4080 Codec |
| Channels | 7.1 |
