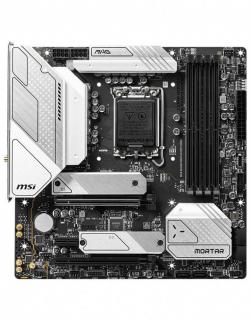

MSI MAG Series Intel B660 LGA1700 Micro-ATX Motherboard (MAG B660M MORTAR WIFI DDR4)
• 12 + 1 +1 DUET RAIL POWER SYSTEM
• 128GB DDR4 Max Memory
• 4 DIMMs, Dual Channel DDR4-4800+ (OC)
• 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot
• 2x M.2 Gen4 x4 64Gbps slots
• 6x SATA 6Gb/s ports, RAID 0/1/5/10, Support Intel Optane Technology
• 1x Realtek 8125BG 2.5Gbps LAN
• Intel Wi-Fi 6 module, Bluetooth 5.2
• 8-Channel (7.1) HD Audio
• Supports 2-Way AMD CrossFire Technology
Warranty: 3 years
Our price: | R 3,869.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | MAGB660MMORTARWIFIDDR4 |
| Product Line | MAG Series |
| Product Type | Motherboard |
| Processor Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B660 |
| Supported Processors | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| CPU Gen Support | 12th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200/ 2933/ 2666/ 2400/ 2133 MHz |
| Max System Memory | 128 GB |
| ECC Support | Supports non-ECC, un-buffered memory |
| Rear Panel Connectors | |
| USB 2.0 | 4 4x USB 2.0 Type-A ports |
| USB 3.2 Type-A | 3 3x USB 3.2 Gen 2 10Gbps Type-A ports |
| USB 3.2 Type-C | 1 1x USB 3.2 Gen2x2 20Gbps Type-C port |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 2 1x PCIe 4.0 x16 1x PCIe 3.0 x4 |
| PCI Express x1 | 1 1x PCIe 3.0 x1 slot |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | 2-Way AMD CrossFire Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 2 |
| System/Chassis FAN Headers | 2 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 1 1x TBT connector (supports RTD3) |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| 4-pin RGB LED Connector | 1 |
| 3-pin RAINBOW LED Connectors | 2 |
| USB 2.0 Headers | 2 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) |
| USB 3.2 Headers | 1 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) |
| USB Type C Header | 1 1x USB 3.2 Gen 2 10Gbps Type-C connector |
| Front panel audio header | 1 |
| Front Panel Connector | 2 |
| Chassis Intrusion Connector | 1 |
| Tuning Controller | 1 |
| Networking | |
| Wired LAN | Realtek 8125BG 2.5G LAN |
| Wireless LAN | Intel Wi-Fi 6 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC1200 Codec |
| Channels | 8 |
