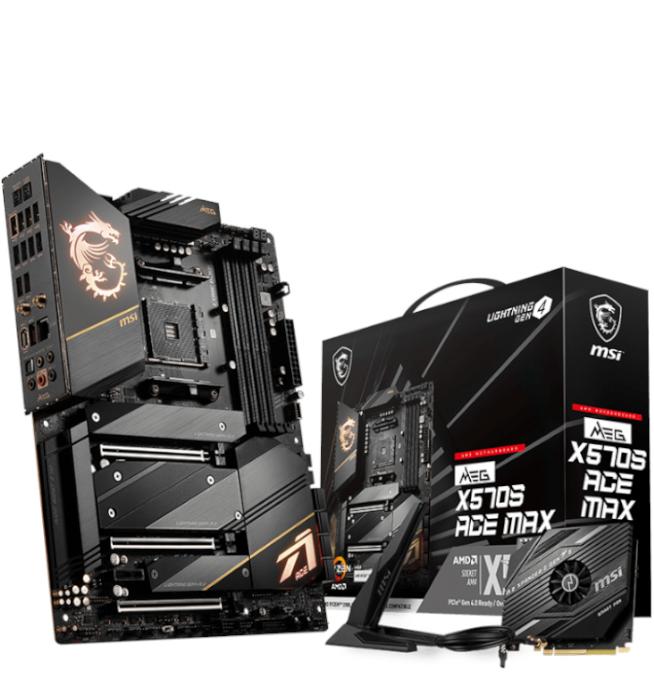

MSI Meg Series AMD X570 AM4 ATX Motherboard (MEG X570S ACE MAX)
• 128GB Max DDR4 Memory,
• 4 x DIMMS, Dual Channel DDR4-5300MHz+(OC), non-ECC, un-buffered memory
• 4 x M.2 Gen4 x4 64Gb/s slots
• 8 x SATA 6Gb/s ports, RAID 0,1,10
• 1x Realtek RTL8125B 2.5 Gbps LAN controller
• Intel Wi-Fi 6E AX210, Bluetooth 5.2
• 8-Channel (7.1) HD Audio with Audio Boost 5 HD
• Support NVIDIA SLI / AMD CrossFire Technology
Our price: | R 10,799.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | MSI AM4 MEG X570S ACE MAX |
| Product Line | Meg Series |
| Product Type | Motherboard |
| Processor Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD X570 |
| Supported Processors | Supports AMD Ryzen 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
| Max System Memory | 128 GB |
| ECC Support | Supports non-ECC, un-buffered memory |
| Rear Panel Connectors | |
| USB 2.0 | 3 3x USB 2.0 Type-A Ports |
| USB 3.2 Type-A | 7 4x USB 3.2 Gen 1 5Gbps Type-A ports 3x USB 3.2 Gen 2 10Gbps Type-A ports |
| USB 3.2 Type-C | 1 1x USB 3.2 Gen 2x2 20Gbps Type-C port |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | <not specified>
|
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 2x PCIe x16 slots (From processor) 1x PCIe x16 slot (From X570 chipset) |
| PCI Express x1 | 1 1x PCIe x1 slot (From X570 chipset) |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | Supports AMD CrossFire Technology Supports NVIDIA SLI Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 2 |
| System/Chassis FAN Headers | 6 |
| 2-pin Thermal Sensor Connector | 2 |
| TPM Module Connector | 1 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| 3-pin Water Flow Connector | 1 |
| 4-pin RGB LED Connector | 1 |
| 3-pin RAINBOW LED Connectors | 2 |
| 3-pin CORSAIR LED Connector | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 2 2x USB 3.2 Gen 1 5Gbps connectors |
| USB Type C Header | 1 1x USB 3.2 Gen 2 10Gbps Type-C |
| Front panel audio header | 1 |
| Front Panel Connector | 2 |
| Chassis Intrusion Connector | 1 |
| Networking | |
| Wired LAN | Realtek RTL8125B 2.5 Gbps LAN controller |
| Wireless LAN | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 4 |
| SATA 3.0 Ports | 8 |
RAID  |
0/1/10 |
| Optane Support | - |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
| Channels | 7.1 |
