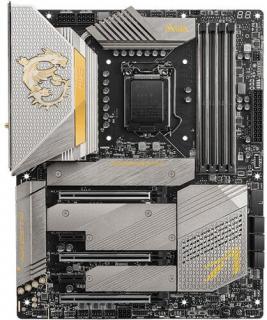

MSI MEG Series Intel Z590 LGA1200 ATX Motherboard
• Socket LGA1200
• Intel Z590 Chipset
*4x DDR4 memory slots, support up to 128GB
• 3x PCIe x16 slots, 2x PCIe 3.0 x1 slots
• Supports 2-Way NVIDIA SLI Technology
• Supports 3-Way AMD CrossFire Technology
• IntelJHL8540 Thunderbolt 4 Controller
• Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
• 1x Intel I225V 2.5Gbps LAN controller
Our price: | R 6,329.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | Z590ACEGOLDETD |
| Product Line | MEG Series |
| Product Type | Motherboard |
| Processor Socket | LGA1200 |
| Form Factor | ATX |
| Chipset | Intel Z590 |
| Supported Processors | 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Gen Support | 11th Gen 10th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | 600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Max System Memory | 128 GB |
| ECC Support | Supports non-ECC, un-buffered memory |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 6 4x USB 3.2 Gen1 5Gbps (Type-A) 2x USB 3.2 Gen2 10Gbps (Type-A) |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| Thunderbolt | 2 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 1 x Optical |
| OFC Audio Jacks | 5 |
| SMA antenna connectors (2T2R) | 2 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 |
| PCI Express x1 | 2 |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 2 |
| 6-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 6 |
| TPM Module Connector | 1 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| USB Type C Header | 1 |
| Front panel audio header | 1 |
| Chassis Intrusion Connector | 1 |
| Networking | |
| Wired LAN | 1x Intel I225V 2.5Gbps LAN controller |
| Wireless LAN | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Storage System | |
| M.2 Ports | 4 |
| SATA 3.0 Ports | 6 |
RAID  |
<not specified>
|
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
| Channels | 7.1 |
