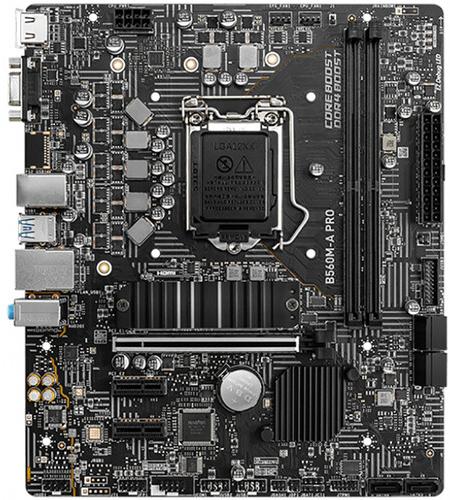

MSI Pro Series Intel B560 Socket LGA1200 Micro-ATX Motherboard (B560M-A PRO)
• Micro-ATX Form Factor
• Intel B560 Chipset
• LGA 1200 Socket
• 2 x Dual-Channel DDR4 5200 (OC)
• 6 x SATA III, 1 x M.2
• 1 x PCIe 4.0 x16 Slot
• 2 x PCIe 3.0 x1 Slots
• Realtek 7.1-Channel Audio
• 2.5 Gigabit Ethernet Port
• USB 3.2 Gen 1, USB 2.0
Our price: | R 2,539.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | B560M-A PRO |
| Product Line | PRO Series |
| Product Type | Desktop |
| Processor Socket | LGA1200 |
| Form Factor | Micro-ATX |
| Chipset | Intel B560 |
| Supported Processors | 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Gen Support | 11th Gen 10th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 2 |
| Memory Bandwidth | 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| Max System Memory | 64 GB |
| ECC Support | Supports non-ECC, un-buffered memory |
| Rear Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.2 Type-A | 4 |
| D-Sub (VGA) | 1 |
| DVI | <not specified>
|
| HDMI | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 1 |
| PCI Express x1 | 2 |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | <not specified>
|
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 1 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| Front panel audio header | 1 |
| Serial Port Header | 1 |
| Chassis Intrusion Connector | 1 |
| Networking | |
| Wired LAN | 1x Realtek 8125B 2.5Gbps LAN controller |
| Storage System | |
| M.2 Ports | 1 |
| SATA 3.0 Ports | 6 |
RAID  |
<not specified>
|
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC897 Codec |
| Channels | 7.1 |
