Netgear Web Managed Click Switches

NETGEAR ProSAFE Web Managed Click Switch Family Overview

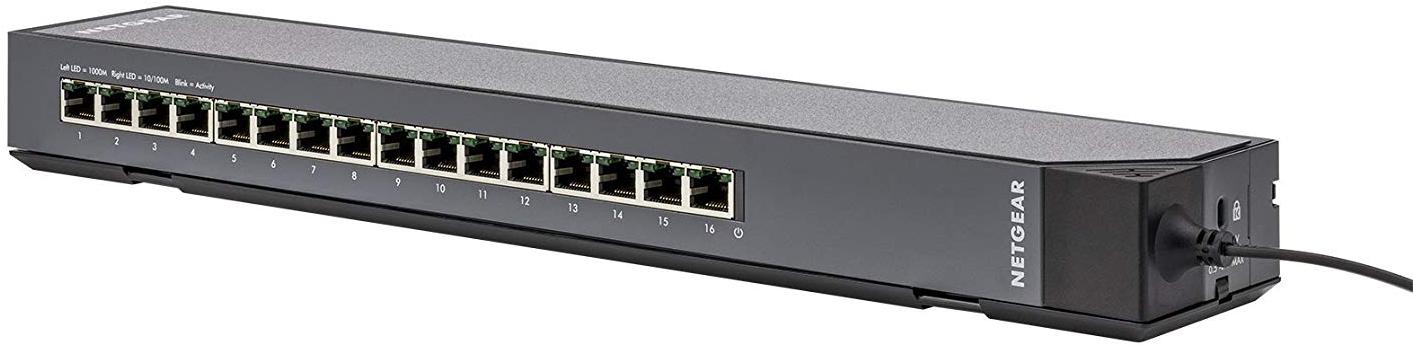

The Web Managed Click Switches GSS108E (8-port), GSS108EPP (8-port with PoE+) and GSS116E (16-port), all feature an innovative and flexible mounting bracket, making it easy to mount them vertically or horizontally, flat or perpendicular, on a wall, under a desk, or strapped to a pole, allowing you to put your ports where and how you need them! Watch the video to the left for more information.

Innovative Mounting Bracket and Silent operation

Simple to use mounting bracket enables vertical or horizontal orientation of ports.

To install, just mount the bracket onto a wall, desk, table leg/pole or "Virtually Anywhere", and "Click" the switch into the bracket.

All Click Switches feature a fanless design, even the GSS108EPP PoE+ model, providing Power-Over-Ethernet to your PD devices yet allowing silent operation in conference rooms, open space offices, healthcare centers or any noise-sensitive environment.

PoE+ Support

Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices.

Four (4) PoE+ ports (up to 30W per port) allow for the connection of up to 4 PoE/PoE+ (802.3af and 802.3at) devices (up to a total PoE power budget of 47W), plus an additional 4 non-PoE devices. PoE ports may also be used for non-PoE devices.

This new member of the Click Switch family allows you to install PoE+ ports in any environment, and exactly where you need them.

The innovative mounting system gives you the flexibility to place the PoE+ Click Switch in locations where other switches cannot go.

Innovative "Virtually Anywhere" Mounting System

The innovative and unique mounting system gives you the flexibility to place NETGEAR ProSAFE Click Switches in locations where other switches cannot go. Whether it's directly on a wall, strapped to a pole, under the meeting table in a conference room or in a server closet, vertical or horizontal, flat or perpendicular, the Click Switch's unique mounting system allows you to control exactly how and where your ports and cables are deployed.

Web Managed Switch Networking Features

The Web Managed Click Switches can go beyond plug-and-play connectivity with additional ProSAFE Web Managed Switch networking features, allowing businesses to segment the network with VLANs or prioritize voice and video traffic with QoS. IGMP Snooping allows for optimized multimedia delivery and port trunking (GSS108EPP and GSS116E only) adds redundancy to uplinks and servers. Setup and configuration is simple using the web browser-based configuration GUI.

Hardware Features

Gigabit Ethernet Ports

With up to 16 Gigabit Ethernet ports (depending on model), there are plenty of ports for all your high-speed connectivity needs, with backward compatibility to Fast Ethernet.

PoE+ Gigabit Ethernet Ports

The GSS108EPP also has four (4) PoE+ Gigabit Ethernet ports (802.3at) allowing for both power and connectivity across one wire.

"Virtually Anywhere" Click Mounting System

All Click Switches come with the "Virtually Anywhere" mounting system allowing you to put your ports exactly where you want them.

Software Features

Comprehensive QoS Features

Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.

• Port-based or 802.1p-based prioritization
• Layer 3-based (DSCP) prioritization
• Port-based ingress and egress rate limiting

IGMP Snooping

For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.

Loop Detection / Auto DoS Prevention

Detect accidental network loops and protect against DoS (Denial of Service) attacks.

Port-based & 802.1Q-based VLANs

Segment network into smaller groups for more secure and efficient use of network resources.

PoE Per Port Controls (GSS108EPP Only)

Advanced per port PoE controls for remote power management of PoE connected devices (eg. Wireless AP, IP security cameras, LED lighting, door locks, IoT devices…) including:

• Enable/disable PoE power per port
• PoE prioritization
• PoE power class configuration (802.3af, 802.3at)
• User-defined PoE power limit per port (override detected Class)
• Power cycle PoE per port

Port Trunking / Link Aggregation (LAG)

Build up bigger bandwidth to support aggregated uplink/downlink traffic. Static LAGs can be manually setup allowing up to 4Gbps connections to link aggregation capable devices such as ReadyNAS storage.

Energy Efficient Ethernet (IEEE 802.3az)

For maximum power savings and reduced energy costs.

Port Mirroring

For better and quicker network diagnostics and troubleshooting.

Hardware "Virtually Anywhere" Click Mounting system allows for:

• Vertical/side mount
• Vertical/rear mount
• Horizontal/side mount
• Horizontal/rear mount

• Multi-directional power cable can be routed outwards or downwards
• Internal power supply (simple power cord from switch to outlet)
• LED lights can be turned off for non-distracting placement next to a TV
• Fanless for silent operation
• 2 Quick access USB charging ports for tablets or smartphones (GSS108E only)
• 4 PoE/PoE+ ports with 47W PoE Budget (GSS108EPP only)

Traffic Management

• Auto-negotiation of speed and duplex modes
• 802.3x Flow Control
• DHCP client
• Dynamic MAC address management
• IEEE 802.1Q-based or port-based VLAN
• QoS based on WRR, strict priority, or both
• Port-based and IEEE 802.1p-based QoS
• QoS based on ToS (Type-of-Service)
• DSCP support
• Rate limiting

Multicast Efficiency

• IGMP snooping, v1, v2 and v3
• IGMP snooping querier (16 port model only)
• Blocking of unknown multicast traffic
• Act as static multicast router port

Link Aggregation (GSS116 and GSS108EPP only)

Manual Static LAGs

• 2 LAGs with max 4 members in each LAG
• 2 LAGs with max 8 members in each LAG

Reliability, Performance and Troubleshooting

• Port mirroring both on ingress and egress traffic
• Jumbo frame support
• Broadcast storm control
• Cable diagnostics
• Loop detection
• DoS prevention (GSS108EPP and GSS116E only)
• Energy Efficient Ethernet (IEEE 802.3az) compliant

Switch Management

• Advanced configuration and management using web browser-based GUI
• Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
• Firmware Upgrade through ProSAFE Plus Utility (TFTP)
• Configuration upload (to Server)
• System password protection
