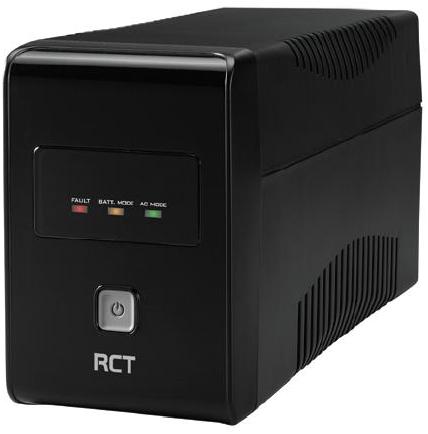

RCT 650VA Line Interactive UPS
• 360 W • LED display • 1 x USB Port
NIVO#: 33675
Model: RCT-650VA
Warranty: 1 year
Our price:
R 989.95
 (incl. VAT)
Availability  check now
Shipping time 2-3 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Optional Accessories top
Overview & Features top

RCT-650VA

  • Fast charging in 4 hours
  • Built-in excellent microprocessor controller
  • Boost and buck AVR for voltage stabilization
  • Free monitoring software download




MODEL - RCT-650VA
CAPACITY - 650 VA / 360 W


INPUT
Voltage - 110/120 VAC or 220/230/240 VAC
Voltage Range - 81-145 VAC / 162-290 VAC
Frequency Range - 60/50 Hz (auto sensing)


OUTPUT
Output Voltage - 110/120 VAC or 220/230/240 VAC
AC Voltage Regulation (Batt. Mode) - ±10%
Frequency Range (Batt. Mode) - 60 Hz or 50 Hz ±1 Hz
Transfer Time - Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) - Simulated Sinewave


BATTERY
Battery Type & Number - 12 V/7 Ah x 1
Typical Recharge Time - 4-6 hours recover to 90% capacity


PROTECTION
Full Protection - Overload, discharge, and overcharge protection


INDICATORS
AC Mode - Green lighting
Battery Mode - Yellow flashing
Fault - Red lighting


ALARM
Battery Mode - Sounding every 10 seconds
Low Battery - Sounding every second
Overload - Sounding every 0.5 second
Battery Replacement Alarm - every 2 seconds
Fault - Continuously sounding


PHYSICAL
Dimension, D x W x H (mm) - 287 x 100 x 142
Net Weight (kgs) - 4.25

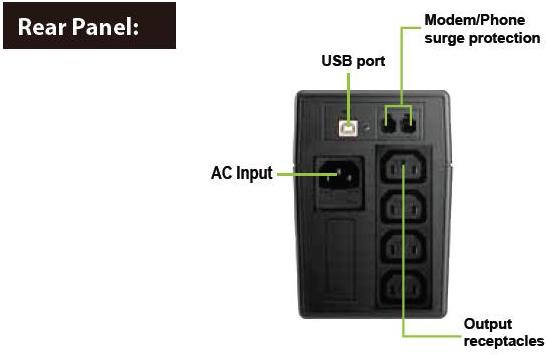

MANAGEMENT
USB Port -
Supports Windows2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC
Specification top
General
Manufacture Code
RCT-650VA
Model
RCT-650VA
Product Type
UPS
Technology Type
<not specified>
UPS Type
Offline
Charging Method
<not specified>
Configuration
<not specified>
Output VA Rating
650 VA
Output Watts Rating
360 watts
Main Output Voltage
240 Volts
Input Power Socket
<not specified>
Output Power Socket
<not specified>
IEC Outlets
<not specified>
Rackmountable
<not specified>

Physical Dimensions
Width
100 mm
Height
142 mm
Depth
287 mm
Weight
4.25 kg
