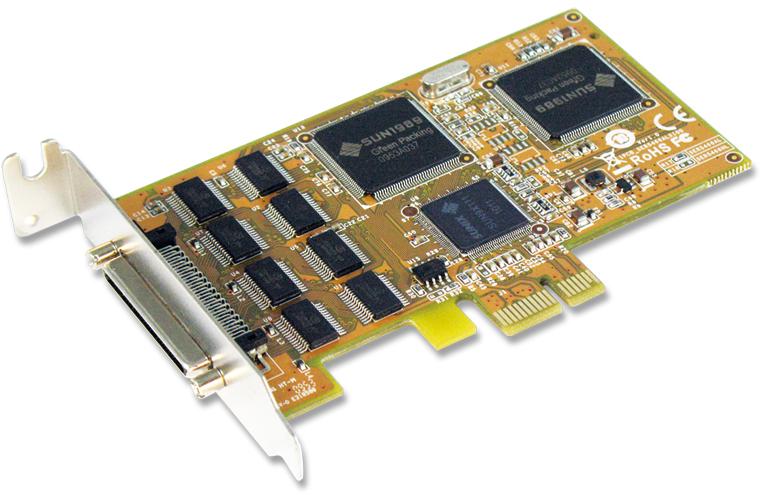

Sunix 8-port RS-232 PCI Express Low Profile Serial Card
• Expands 8 independent RS-232 serial ports with communication speeds up to 921.6Kbps • High speed SUN1999 16C950 compatible UART controller on-board • Designed to meet PCI Express Base Specification Revision 1.1 • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys
NIVO#: 42650
Warranty: 1 year
Our price:
R 3,789.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

SER5466HL

8-port RS-232 High Speed PCI Express Low Profile Serial Board

SUNIX SER5466HL, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add eight serial ports to their system, allowing them to use serial devices further. SUNIX SER5466HL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

  • Expands 8 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Low profile bracket design idea for slim or portable PC.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.
Specification top
General
Model
SER5466HL
Device Description
8-port RS-232 High Speed PCI Express Low Profile Serial Card
Product Line
RS-232 Series
Product Type
Serial RS-232 board
Form Factor
Plug-in card

Connectivity
Wired/Wireless
-
Data Transfer Rate
921.6Kbps
Connecting Interface Type
PCI Express
Expansion Interfaces Type
Serial Port
Ports
8

System Requirements
System Requirements
Linux
Linux 2.4.x/2.6.x/3.x
DOS
Windows
Windows Client Windows XP/Vista/7/8/8.1 (X86/X64)
Windows Server Windows 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded Windows CE 4.2/5.0/6.0/XP Embedded/POSReady 2009/POSReady 7/
Embedded System 2009/Embedded Standard 7
