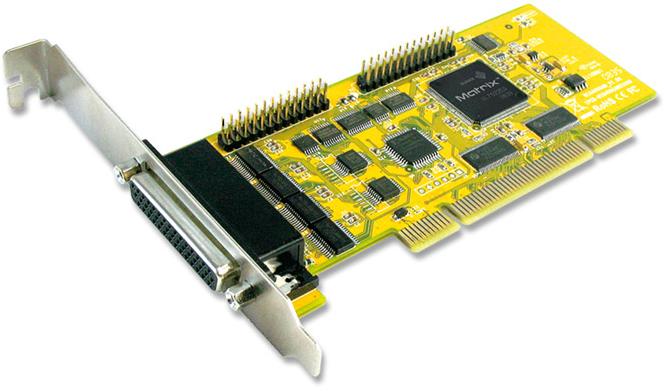

Sunix MIO4096AM

4 ports RS-232 & 2 ports Parallel PCI Card

The majority of today’s motherboards is not equipped with any RS-232 or parallel LPT port. With SUNIX MIO4096AM Multi I/O board, users can expand four RS-232 and two IEEE1284 parallel ports on their system, allowing them to use traditional serial and parallel devices further.

SUNIX MIO4096AM is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO4096AM Multi-IO card supports majority of the OS on the market.

We provide driver support for Microsoft Windows X86/X64 platform, and Linux 2.2.x ~ 2.6.x kernels, making it the best and most economical solution for commercial and industrial applications.

Features

• Expands 4 ports RS-232 and 2 ports IEEE1284 interface on system.
• Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
• High reliability SUNIX UL7522EQ 16C650 compatible Multi-IO controller on-board.
• Expands four RS-232 serial ports with communication speeds up to 230.4Kbps.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ±15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Support IEEE 1284-1994 parallel port standard.
• * ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
• * SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Certified by RoHS CE, FCC ClassB approval.
• Support DOS, Linux, Microsoft 3.x, 9x, Me, NT, 2000, XP, 2003, Vista, and 2008.
• Ready for the IntelR and AMDR 32/64-bit operation system.
