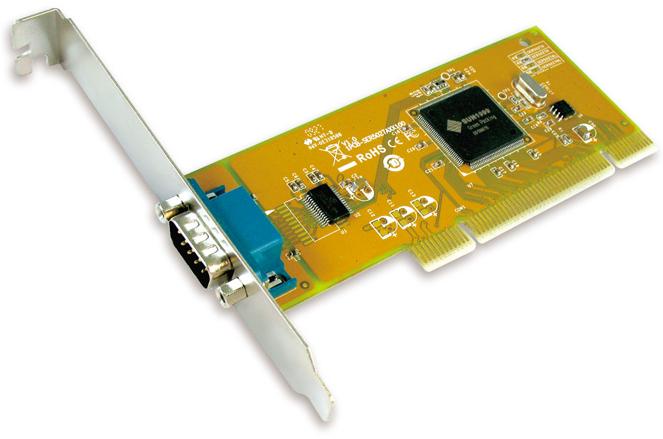

Sunix SER5027H

1-port RS-232 High Speed Universal PCI Serial Board

SUNIX SER5027H, Universal PCI serial communication board, allows users to add or expand one RS-232 port on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems.

SUNIX SER5027H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

• Expands single independent RS-232 serial port with communication speeds up to 921.6Kbps.
• High reliability SUN1989 16C950 compatible UART controller on-board.
• Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
• Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.
