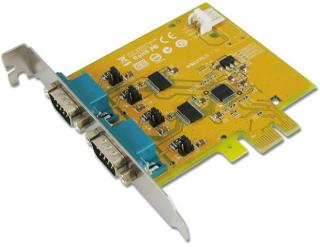

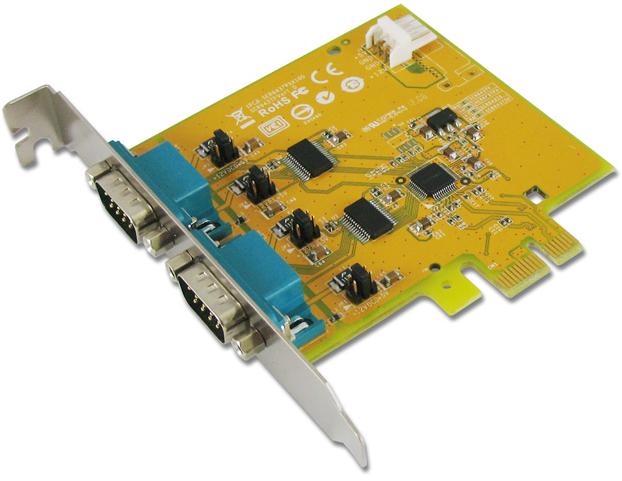

Sunix SER5037PH

2-port RS-232 High Speed Universal PCI Serial Board With Power Output

SUNIX SER5037PH, Universal PCI serial communication board, allows users to add or expand two RS-232 ports on PC-based system. This board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX SER5037PH is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing this multi-port card to be installed in virtually any available PC and compatible with all major operating systems. Furthermore, SUNIX SER5037PH serial card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, WinCE, Linux, making it the best and most economical solution for commercial and industrial applications.

Features

• Expands 2 independent RS-232 serial port with communication speeds up to 921.6Kbps.
• High speed SUN1989 16C950 compatible UART controller on-board.
• Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
• Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
• Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.
