Tenda TEF1026F 26 port Ethernet Desktop/Rackmount Unmanaged Switch
• Enterprise • Switching capacity 8.8Gbps. • Mac address table 16K/device. • 6kVin Common Mode Protection for 2xGE ports & 6kVin Common Mode, 4kVin Di erential Mode Protection for power supply. • IEEE 802.3, IEEE 802.3ab, IEEE 802.3u & IEEE 802.3x.
NIVO#: 67248
Model: TEF1026F
Warranty: no warranty
Our price:
R 1,389.95
 (incl. VAT)
Availability  check now
Shipping time check now
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

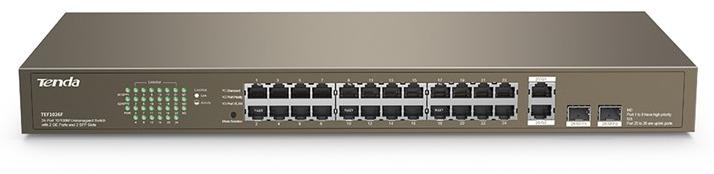

TEF1026F 26 port Ethernet Desktop/Rackmount Unmanaged Switch

TEF1026F provides 24 10/100 Mbps auto-negotiation RJ45 ports, 2 gigabit SFP slots and offers a data rate in full duplex of as high as 2000 Mbps. Working with Tenda SFP modules TEG311SM, the switch supports a maximum transmission distance of as high as 20 km. In addition, a large capacity cache is equipped in the switch and all ports support wire-speed forwarding, ensuring fast transmission of large files, smooth playback of videos and stable connection for 7*24 hours.

Dedicated for Surveillance and SMB

Gigabit SFP Uplink/6kV Integrated Lightning Protection/3 Modes

Gigabit SFP Slots up to 2000 Mbps Full-wire Speed

TEF1026F provides 24 10/100 Mbps auto-negotiation RJ45 ports, 2 gigabit SFP slots and offers a data rate in full duplex of as high as 2000 Mbps. Working with Tenda SFP modules TEG311SM, the switch supports a maximum transmission distance of as high as 20 km. In addition, a large capacity cache is equipped in the switch and all ports support wire-speed forwarding, ensuring fast transmission of large files, smooth playback of videos and stable connection for 7*24 hours.

Excellent Lightning Protection

With professional lightning protection circuit, all ports and power supply module feature 6 kV lightning protection, greatly protecting the switch from being damaged by thunder storm.

Cascade with 3 Devices Can Support IP Surveillance Preject of 72 Cameras

Three devices are cascaded through 25 and 26 Gigabit ports, which can support up to 72 channels of 500W camera access and ensure stable video transmission without jamming. If both devices are connected to NVR, the local watching of surveillance video can be realized. The equipment of surveillance room can also be connected to NVR, and the other edge device can be connected to router to connect external network.

3 Modes for Different Networks

Standard mode, Port-based priority mode and Port-based VLAN mode make TEF1026F can deal with different networks, Special for Small & Medium-sized IP Surveillance and Wi-Fi Coverage Projects

Mode 1 Standard Mode

In that mode, all ports can communicate with each other, but the switch could not be managed through web UI.

Mode 2 Port-based Priority Mode

In that mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. When the switch is connected to multiple IP cameras, you are recommended to use this mode for better smooth transmission, and connect the key IP cameras to the ports with higher priority, connect the two uplink ports (ports 25 and 26) to uplink devices (such as NVR or router).

Mode 3 Port-based VLAN Mode

In that mode, ports 1 to 24 can communicate with uplink ports (ports 25 and 26) but cannot communicate with each other. You can use this mode to isolate DHCP broadcast and eliminate broadcast storm.

3 Modes for Different Networks

Standard mode, Port-based priority mode and Port-based VLAN mode make TEF1026F can deal with different networks, Special for Small & Medium-sized IP Surveillance and Wi-Fi Coverage Projects
Specification top
General
Product Type
Switch
Usage
Enterprise
Speed
Ethernet
Form Factor
Desktop/Rackmount
Stackable
-
Management Type
Unmanaged
Supported Standards
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.3x
Features
6kVin Common Mode Protection for 2xGE ports
6kVin Common Mode, 4kVin Di erential Mode Protection for power supply

Ports
Port Type
Ethernet LAN
Total Ports
26
Fast Ethernet RJ45 Ports
24
Gigabit SFP Ports
2

Performance
Switching Method
Store-and-Forward
Switching Capacity
8.8 Gbps
MAC Address Table
16 K
