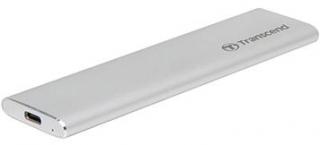

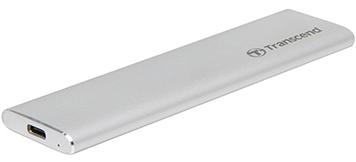

Transcend M.2 SSD Enclosure Kit
• Sleek, pocketable design • USB Type-A and Type-C supported • Enhanced performance with UASP • Two form factors
NIVO#: 67719
Model: TS-CM80S
Warranty: 2 years
Our price:
R 459.00
 (incl. VAT)
Availability  check now
Shipping time 2-3 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

M.2 SSD Enclosure Kit

Transcend's CM42 and CM80 are enclosures in different form factors designed specifically for M.2 SATA SSDs. By following the step-by-step installation guide, you can transform an M.2 SATA SSD into a portable USB 3.1 Gen 1 external drive, maximizing utilization.

Sleek, pocketable design

Transcend's M.2 SSD enclosure features a lightweight aluminum construction, making it both portable and durable while you are on the move. A LED indicator lets you know when the drive is in use.

USB Type-A and Type-C supported

To accommodate devices with different USB ports, the M.2 SSD enclosure is engineered to convert to a USB Type-C port, offering flexibility of being used on different platforms with either USB Type-A or Type-C port.

Enhanced performance with UASP

The M.2 SSD enclosure uses the USB 3.1 Gen 1 interface incorporated with UASP (USB Attached SCSI Protocol) that makes transfer speeds faster than with a sole USB 3.0 interface when used with a UASP-enabled host computer.

Quick and easy installation

  • Insert an M.2 SSD into the connector on the adapter.
  • Screw the M.2 SSD onto the adapter.
  • Place the M.2 SSD assembly into the enclosure with the USB Type-C connector facing outward.
  • Screw the metal plate to the front of the enclosure.
  • Attach the aluminum sticker to the front panel. Do not obstruct the LED hole.
  • Connect the M.2 SSD enclosure to your computer.

Two form factors

To be compatible with the most common M.2 SATA solid state drives, Transcend offers two enclosures in different form factors for multiple drive heights. The CM42 enclosure is for type 2242 only, whereas the CM80 can mount type 2242, 2260, and 2280.

For M.2 SATA SSDs

Transcend’s M.2 SSD enclosure kit is designed specifically to accommodate M.2 SATA SSDs with a B+M key. It does not support PCIe M.2 SSDs.

Specifications

Dimensions (Max.)

  • CM42: 81.41 mm x 33.6 mm x 7.5 mm
  • CM80: 120.16 mm x 33.6 mm x 7.5 mm
  • Weight (Max.) CM42: 29 g , CM80: 41 g

Interface

  • USB Type - USB Type C to USB Type A
  • Connection Interface - USB 3.1 Gen 1
  • Bus Interface - SATA III 6Gb/s

Operating Environment

  • Operating Temperature - 0°C (32°F) ~ 70°C (158°F)
  • Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
  • Operating Voltage - 5V
  • Note - The M.2 SSD Enclosure Kit is not compatible with PCI-Express M.2 SSDs.

Warranty

  • Certificate CE/FCC/BSMI
  • Warranty - Two-year Limited Warranty
  • Warranty Policy
Please click here https://www.transcend-info.com/Warranty for more information about the Transcend Warranty Policy.
What's in the Box top
  • 1 M.2 SSD enclosure (CM42 or CM80)
  • 1 M.2 adapter
  • 1 Type-C to Type-A USB cable (45cm)
  • 1 metal plate
  • 1 aluminum sticker
  • 1 screwdriver
  • 3 mounting screws
  • 1 copper nut (CM80 only)
Specification top
General
Product Type
Enclosure
Model
TS-CM80S
Description
Transcend SSD Conversion Kit
External Interfaces
<not specified>

Drives Support
Drive Form Factor
<not specified>
Number of Drives
<not specified>
RAID Support
<not specified>
Maximum Drive Capacity
<not specified>
Drive Interfaces
<not specified>
Hot Swappable
<not specified>

Physical Characteristics
Width
<not specified>
Height
<not specified>
Depth
<not specified>
Weight
<not specified>
