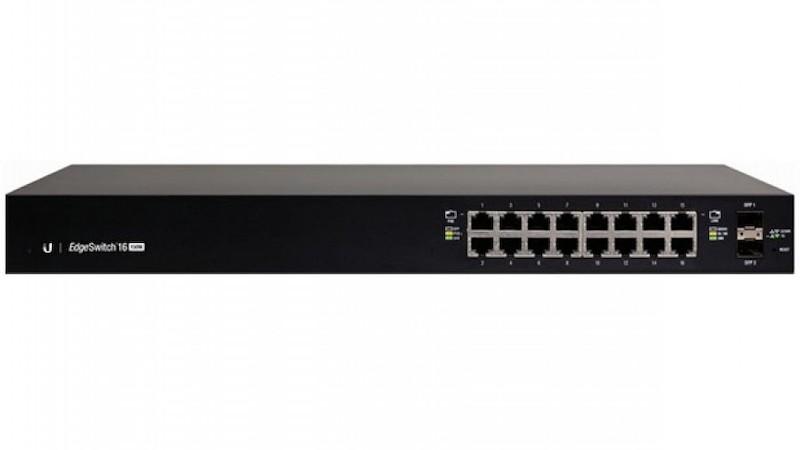

Ubiquiti EdgeSwitch ES-16-150W 16-Port Managed PoE+ Gigabit Switch with SFP
• (16) 10/100/1000 Mbps RJ45 Ethernet Ports • (2) 1 Gbps SFP Ethernet Ports • (1) RJ45 Serial Port, Ethernet In/Out Band • Total Non-Blocking Throughput: 18 Gbps • Switching Capacity: 36 Gbps • Forwarding Rate: 26.78 Mpps • Max. Power Consumption: 150W (Includes PoE Output) • Supports PoE+ and 24V Passive PoE • Wallmountable with Mount Brackets (Included)
NIVO#: 75801Mnf.#: UB-ES-16-150W
Line: EdgeSwitchModel: ES-16-150W
Warranty: 1 year
Our price:
R 8,199.95
 (incl. VAT)
Availability  check now
Shipping time check now
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

Ubiquiti EdgeSwitch 8 150W

The fanless EdgeSwitch 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Gigabit Connectivity

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support

Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul

The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance

The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
What's in the Box top
  • Power Cord
  • 2x Mount Brackets
  • 8x Bracket Screws
  • 4x Mounting Screws
  • 4x Screw Anchors
Specification top
General
Product Type
Switch
Usage
Office
Product Line
EdgeSwitch
Speed
Gigabit
Form Factor
Desktop
Stackable
-
Management Type
Managed
Supported Standards
IEEE 802.3af
IEEE 802.3at
Features
DHCP Server Functionality
DHCP Snooping
DiffServ, CoS
IGMP Snooping
Layer 2 switching
Link Aggregation
MSTP/RSTP/STP
Static Routing
TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
VLAN, Private VLAN, Voice VLAN

Ports
Port Type
Gigabit LAN
Total Ports
18
Gigabit RJ45 Ports
16
Gigabit SFP Ports
2
PoE Ports
16
Console Port
1

Performance
Switching Method
Store-and-Forward
Switching Capacity
36 Gbps
MAC Address Table
<not specified>

Physical Specification
Width
204 mm
Height
235 mm
Depth
43 mm
Weight
1,720 grams
