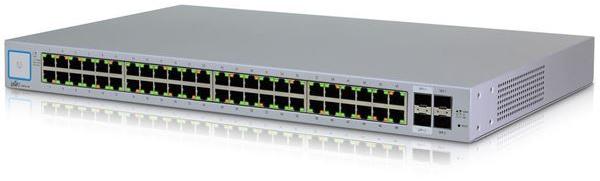

Ubiquiti UniFi US-48 48 port Gigabit Rack-Mountable Switch + 4 SFP Ports
• (48) Gigabit RJ45 Ports • (2) SFP+ Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 70 Gbps • Switching capacity 140Gbps • Forwarding Rate: 104.16 Mpps
NIVO#: 63801
Line: UniFiModel: US-48
Warranty: 1 year
Our price:
R 10,709.95
 (incl. VAT)
Availability  check now
Shipping time check now
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

Ubiquiti US-48 48 port Gigabit Rack-Mountable Switch

Features

  • 48 x Gigabit RJ45 Ports
  • 2 x SFP+ Ports
  • 2 x SFP Ports
  • 1 x Serial Console Port
  • Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Rack-Mountable

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility

The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure.

By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Fiber Connectivity

The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.

Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

UniFi Controller

Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download the controller from www.ubnt.com at no additional charge – there is no separate software, licensing, or support fee.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own unique network monitoring, configuration, maps, statistics, and admin accounts.

Switch Configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
  • PoE setting per port
  • Operation mode (switching, mirroring, or aggregate) per port
  • Network/VLAN configuration
  • Jumbo frame and flow control configuration
  • Network settings
  • Storm control setting per port
  • Spanning tree configuration

Switch Port Status

You can also view status information for each port:
  • Connection speed and duplex mode
  • TX/RX data rates
  • PoE status
  • Network/VLAN setting

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows LAN, WLAN, and Internet traffic, including the breakdown of protocols being used (requires a UniFi Security Gateway).

Topology View

The Topology screen displays a topology diagram of your UniFi system. You can filter the type of information displayed, such as client devices, labels, and link settings.

Software Features

The UnIFi Controller software offers the following features:
  • Centralized configuration management (including configuration cloning)
  • Auto-MDIX automatically adjusts as needed for straight through or crossover cable
  • 802.1X (RADIUS) authentication and dynamic VLAN
  • Auto-generated topology view
  • Centralized statistics in controller
  • RSTP and Spanning Tree Protocol
  • Storm control (independent broadcast, multicast, and unknown destination unicast limits per port)
  • 802.3x flow control
  • 9216-byte jumbo frame support
  • VLAN support
  • Port mirroring
  • Port aggregation (LACP)
  • Port isolation (protected port) for port-level isolation
Specification top
General
Product Type
Switch
Usage
Enterprise
Product Line
UniFi
Speed
Gigabit
Form Factor
Rack-mountable
Stackable
-
Management Type
Managed
Supported Standards
IEEE 802.3at/af
Features
-

Ports
Port Type
10G SFP
SFP
Gigabit LAN
Total Ports
52
Gigabit RJ45 Ports
48
Gigabit SFP Ports
2
10G SFP
2

Performance
Switching Method
Half Duplex
Full Duplex
Switching Capacity
140 Gbps
MAC Address Table
<not specified>

Physical Specification
Width
485 mm
Height
44 mm
Depth
375 mm
Weight
6,100 grams
