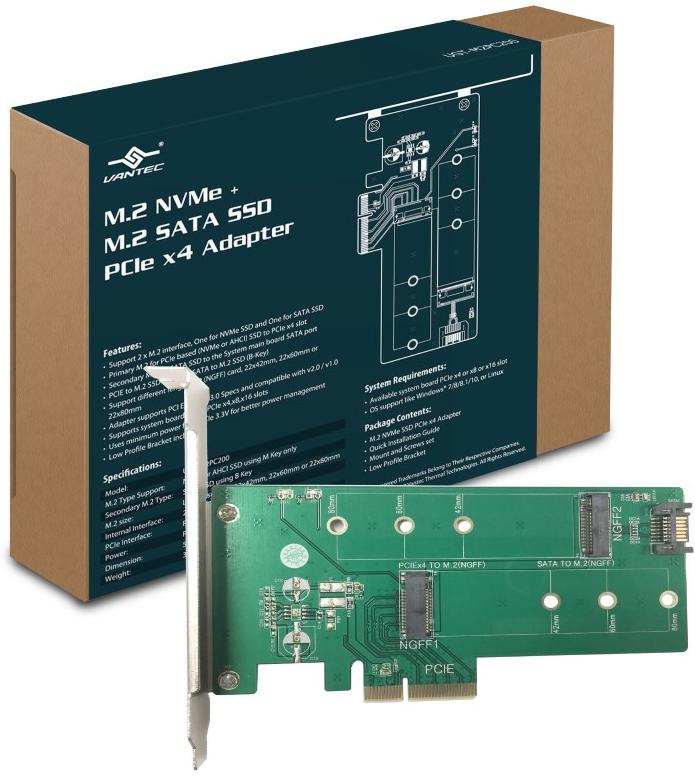

Vantec M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter
• Support 2 x M.2 interface, One for NVMe SSD and One for SATA SSD • Primary M.2 for PCIe based (NVMe or AHCI) SSD to PCIe x4 slot • Secondary M.2 for SATA SSD to the System main board SATA port • PCIE to M.2 SSD (M-Key), SATA to M.2 SSD (B-Key) • Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm • Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0 • Supports system boards with PCIe x4,x8,x16 slots • Uses minimum power from PCIe 3.3V for better power management • Low Profile Bracket included
NIVO#: 65050Mnf.#: VANTEC UGT-M2PC200 ADP
Model: UGT-M2PC200
Warranty: 2 years
Our price:
R 339.95
 (incl. VAT)
Availability  check now
Shipping time 2-3 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter

The M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter is a unique product with 2 very different M.2 Slot. It can offer the fastest boot or data access thru the NVMe SSD and at the same time provide very fast storage through the M.2 SATA SSD. It provides the link between PCIe 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer and another M.2 interface for your M.2 SATA SSD. This adapter allows for flexible installation of an M.2 (NGFF) of different size like 42, 60, or 80mm in length with varying capacity. This M.2 adapter will give you the best performance possible for your system.

Features

  • Primary M.2 Type: NVMe or AHCI SSD using M Key only
  • Secondary M.2 Type: SATA SSD using B Key
  • M.2 size: Length support 22x42mm, 22x60mm or 22x80mm
  • Internal Interface: 2 x M.2 (NGFF)
  • PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes)
  • Power: PCIe Bus powered (3.3V)

System Requirements

  • Available system board PCIe x4 or x8 or x16 slot
  • OS support like Windows® 7/8/8.1/10
  • Linux
What's in the Box top
  • M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter
  • Mount and Screws set
  • Low Profile Bracket
  • Quick Installation Guide
Specification top
General
Model
UGT-M2PC200
Product Type
M.2 Expansion
Form Factor
PCI card

Connectivity
Wired/Wireless
Wired
Connecting Interface Type
PCI-Express x4
Expansion Interfaces Type
M.2
Ports
2
