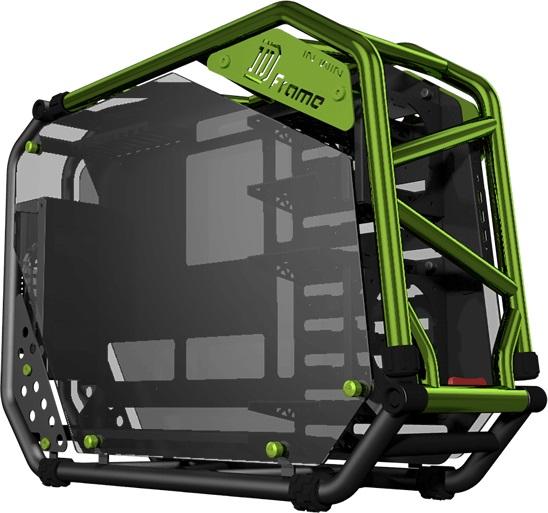

In Win D-Frame 2.0 Windowed Full Tower Chassis - Black & Green
• Open frame chassis with steel tubing + 2x sided tempered glass • 165mm silent fan - TIG (Tungsten Inert Gas) welding tubing • E-ATX, ATX, Micro-ATX • 90 Degree reversed motherboard tray • 1x front usb3.1 type C + 3x usb3.0 + HD audio • 4 x 2.5/3.5 Multi-functional Brackets ( position adjustable ) • 8 x PCI-E Slots • Up to 5x 120mm fans with modular brackets • Supports 1 x 360mm Radiator : (Front: 90mm Maximum Height Including Fan), (Bottom: 65mm Maximum Height Including Fan) • VGA Card Length: 350-415mm (Depends on Mounting Configuration) • VGA Card Height: 173mm (Motherboard Die Surface to Side Panel) • CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel) • InWin Signature series S3-1065W full-modular transparent PSU Included
NIVO#: 58153Mnf.#: CA03
Warranty: 1 year
Our price:
R 16,599.00
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Colours top
In Win D-Frame 2.0 Windowed Full Tower Chassis - Black & Gold Photo
R 16,599.00
In Win D-Frame 2.0 Windowed Full Tower Chassis - Black & Green Photo
R 16,599.00
In Win D-Frame 2.0 Windowed Full Tower Chassis - White & Blue Photo
R 16,599.00

Optional Accessories top
Overview & Features top

InWin D-Frame 2.0 Open-Air Chassis

Live to Build‧. Build to Live

The design concept for D-Frame 2.0 originates from the freedom, individuality and impulsive nature of off-road motorcycles. The combination of steel tubing, anti-flip foot pads with deep tire treads, a power supply in the shape of an air-cooled engine and tempered glass is perfect fusion of art and technology.

Handcrafted Metallic Tubing Structure

Expertly bent tubing is entirely crafted by human hands. TIG (Tungsten Inert Gas) welding is used to reinforced stability, and unique electrode position, which creates an ultra-smooth finish! The motherboard mounting tray is sandblasted to achieve a refined metallic texture.

Innovative Two-Way Open Design with Quick-Release Fasteners

The outer frame features a unique two-way open design. With its quick-release fasteners, D-Frame 2.0 allows for easier assembling and custom display platforms.

Open-Frame Structure with Excellent Thermal Solutions

Open-frame structure improves heat dissipation and airflow is effectively channeled, ensuring excellent ventilated performance.

Thermal Conduction Module

Supports up to five 120mm fans, ventilation for the CPU and hard drive may be freely adjusted.
  • 120mm Fan Bracket x2 - Supports 120mm Fan x 2
  • 3-In-1 Fan Bracket x1 - Supports 120mm Fan x3 - Supports 360mm Liquid Cooling Radiator x1

Hard Drive Module

Four 2.5"/3.5" multifunctional brackets allows gamers to freely adjust quantity and position
  • 2.5"/3.5" multifunctional brackets positions may be moved forward and backward
  • Multifunctional Bracket x4 - Supports 2.5"/3.5" HDD x4
  • Holes are present on the multifunctional bracket, which can conveniently connect water cooling pumps or other modding purposes.

Customized, Flexible, Versatile Thermal and Hard Drive Modules

Flexible and versatile build options give gamers the freedom to customize their gaming rigs. The HDD and cooling fan can be installed at the front or bottom positions.

Highly Expandable for Superb Performance

Supports the latest high-end graphics cards, CPU heatsink and motherboards E-ATX (12”x13”).

USB 3.1 Type-C Ultra-High-Speed Transmission

Advanced USB 3.1 Type-C interface provides up to 10Gbps transmission speed*, greatly reducing data transmission time. Dual-side slot also increases convenience.

  • Actual transmission speed depends on motherboard specifications.

2.0: Whole New Generation

Every detail reflects the aesthetics of craftsmanship

SIII-1065W Transparent Power Supply

Each D-Frame 2.0 includes a SIII-1065W power supply, which is exclusively designed for D-Frame 2.0

Options for Hardware Skins

D-Frame 2.0 comes with three different color options for users to accommodate with the core themed builds. Choose your own color and enjoy the wildest dream!
  • White/Blue
  • Black/Gold Platinum
  • Black/Green
Specification top
General
Product Line
D-Frame 2.0 Open Frame
Color
Black & Green
Model
D-Frame 2.0
Chassis Type
Full Tower
Product Type
Gaming Chassis
Motherboard Form Factor
ATX
EATX
Micro ATX
Power Supply Form Factor
ATX
EPS12V
PSU Included
Yes

Bays
External 5.25"
<not specified>
Internal 3.5"
4
Internal 2.5"
<not specified>

Features
Transparent / Window
Yes
Materials
Aluminium
Reinforced Steel Tube
Tempered Glass

Front Ports
USB 3.0
3
USB 3.1 - Type C
1
Audio
HD Audio

Physical Dimensions
Width
291 mm
Height
726 mm
Depth
584 mm
Weight
22.50 kg
